Volkswagen T5

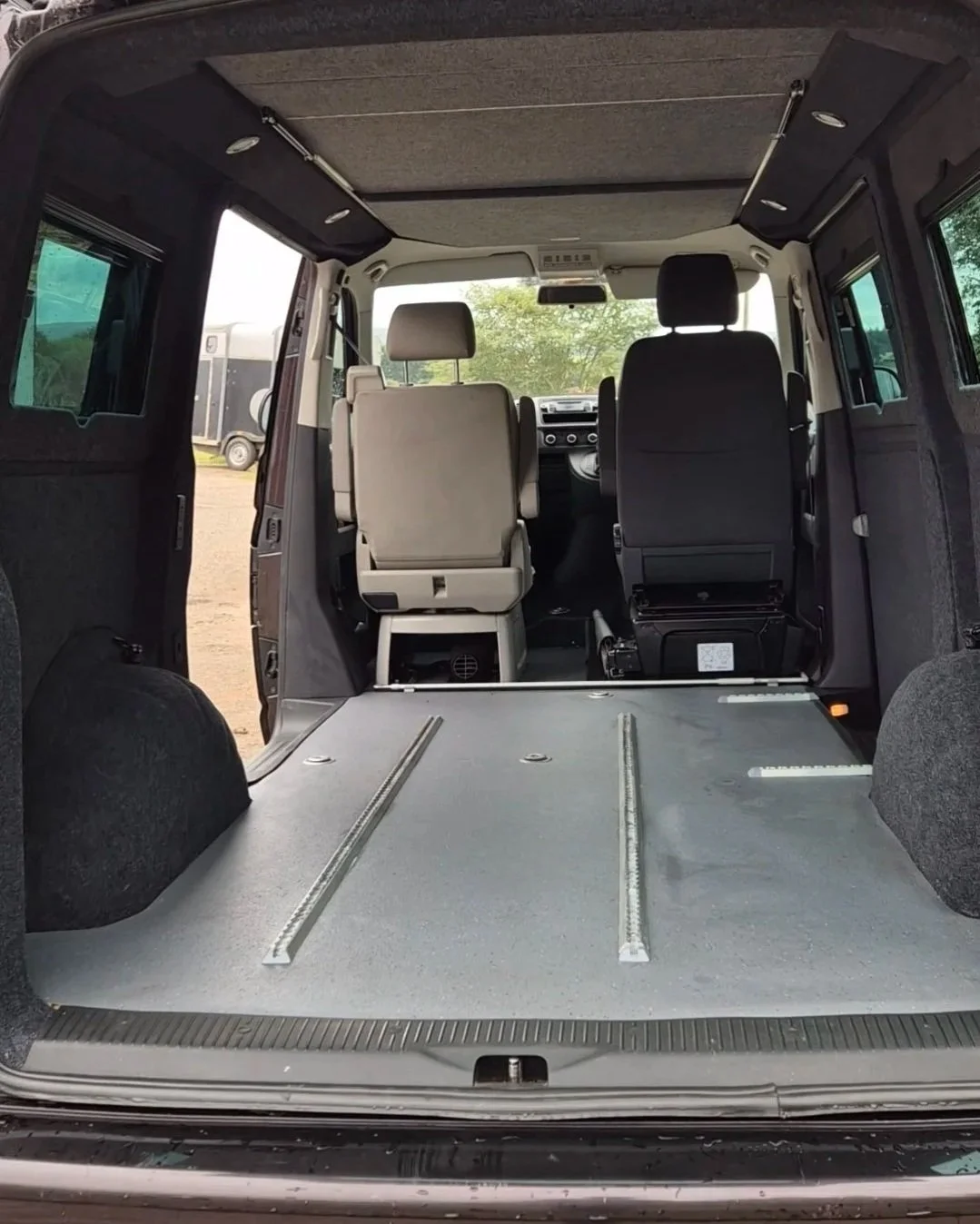

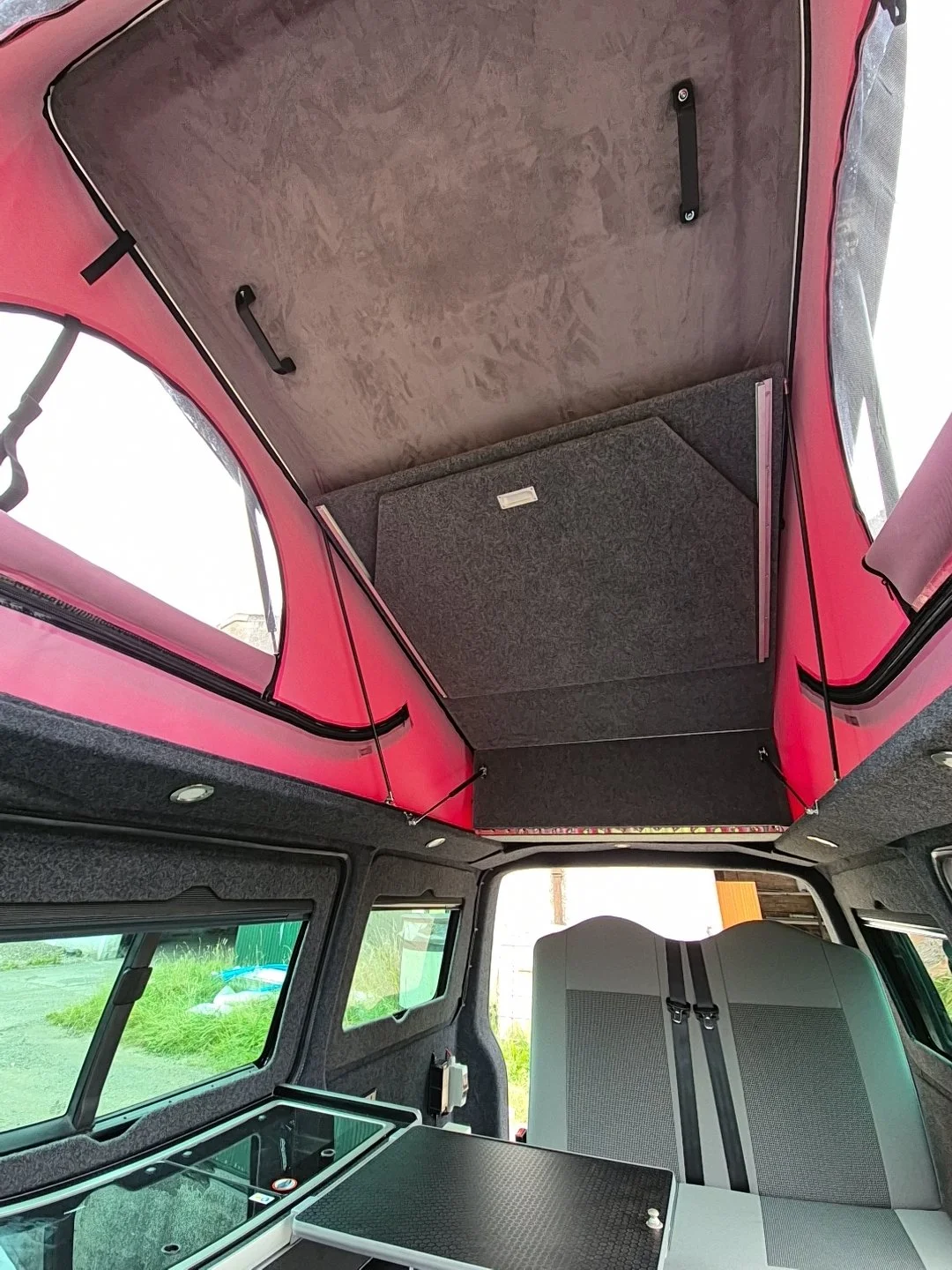

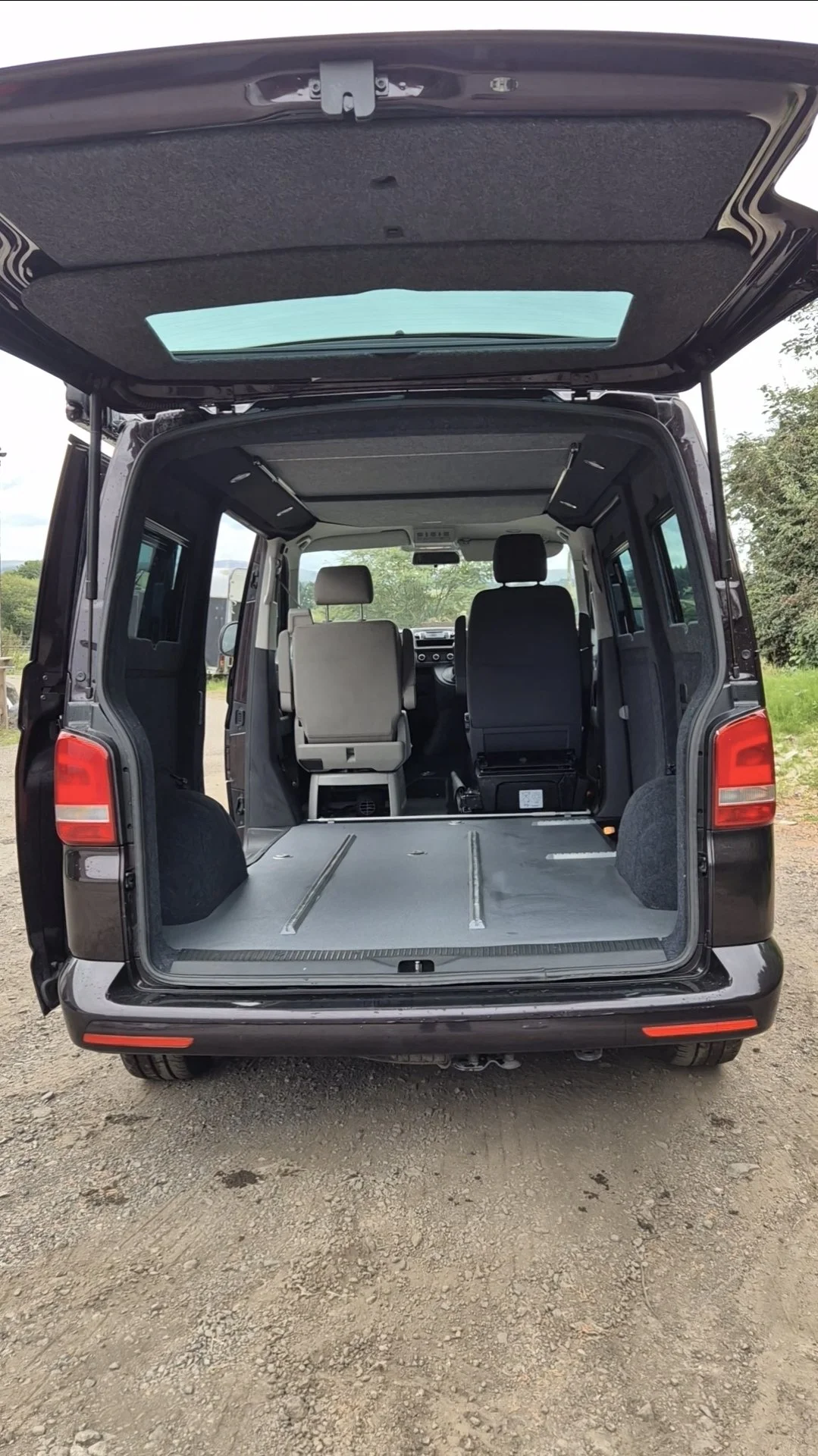

The brief was to build a multi-use four berth campervan which can be used as a six berth people carrier and an empty van when required. We achieved this by making everything within the van modular and removable when required. Everything was mounted on unwin rails enabling multi-use of the rock and roll bed, modular seating and modular kitchen unit. To top it off, we fitted a top of the range Skyline pop top with bifold bed, roof slider and scenic canopy.
TYPE: FULL BUILD
SLEEPS: 4
CONVERTED: 2024
Off grid capability
Fully insulated
2kw diesel heater,digitally controlled hot air heating, BT enabled and hooked into vehicle fuel tank

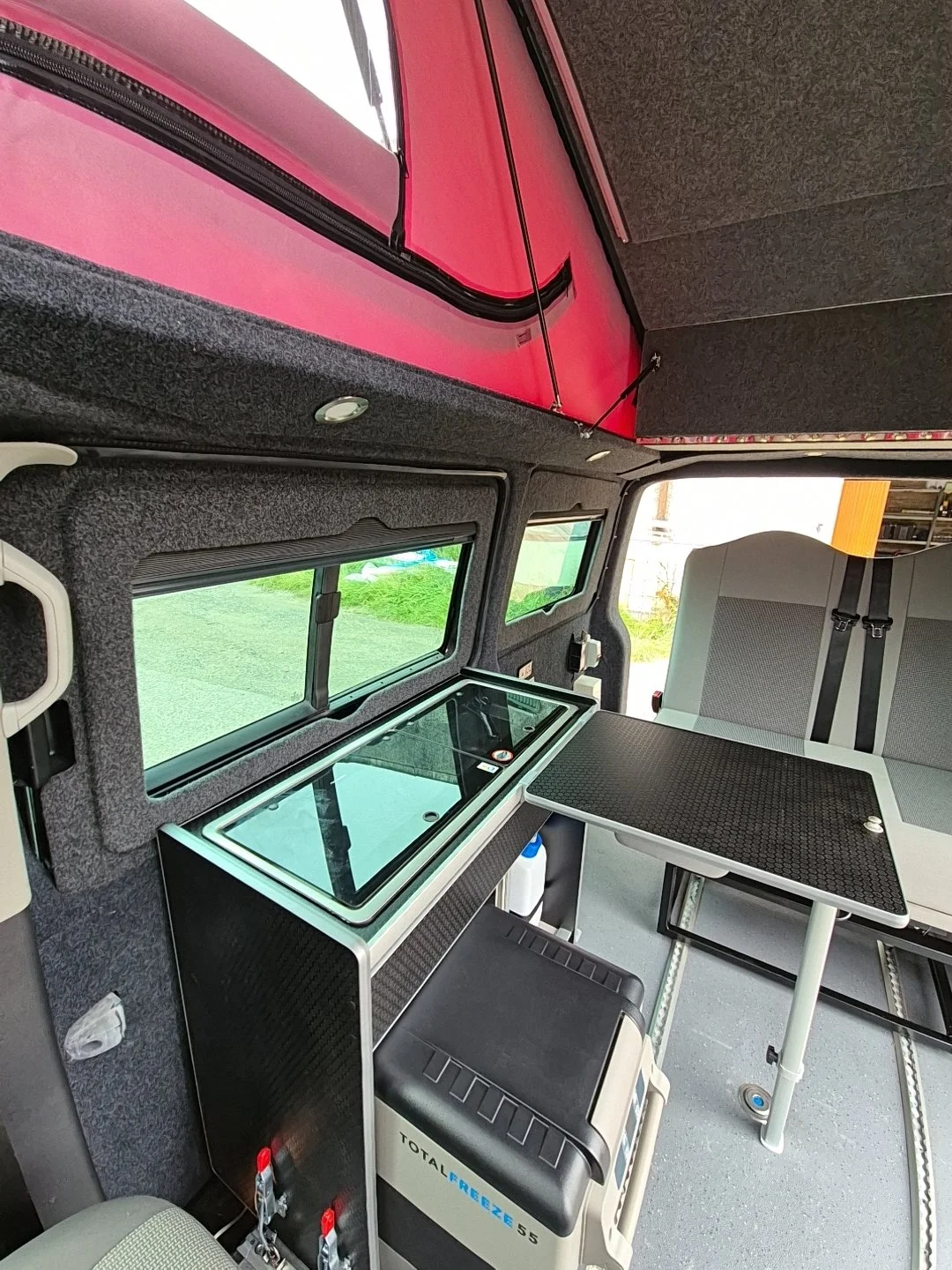

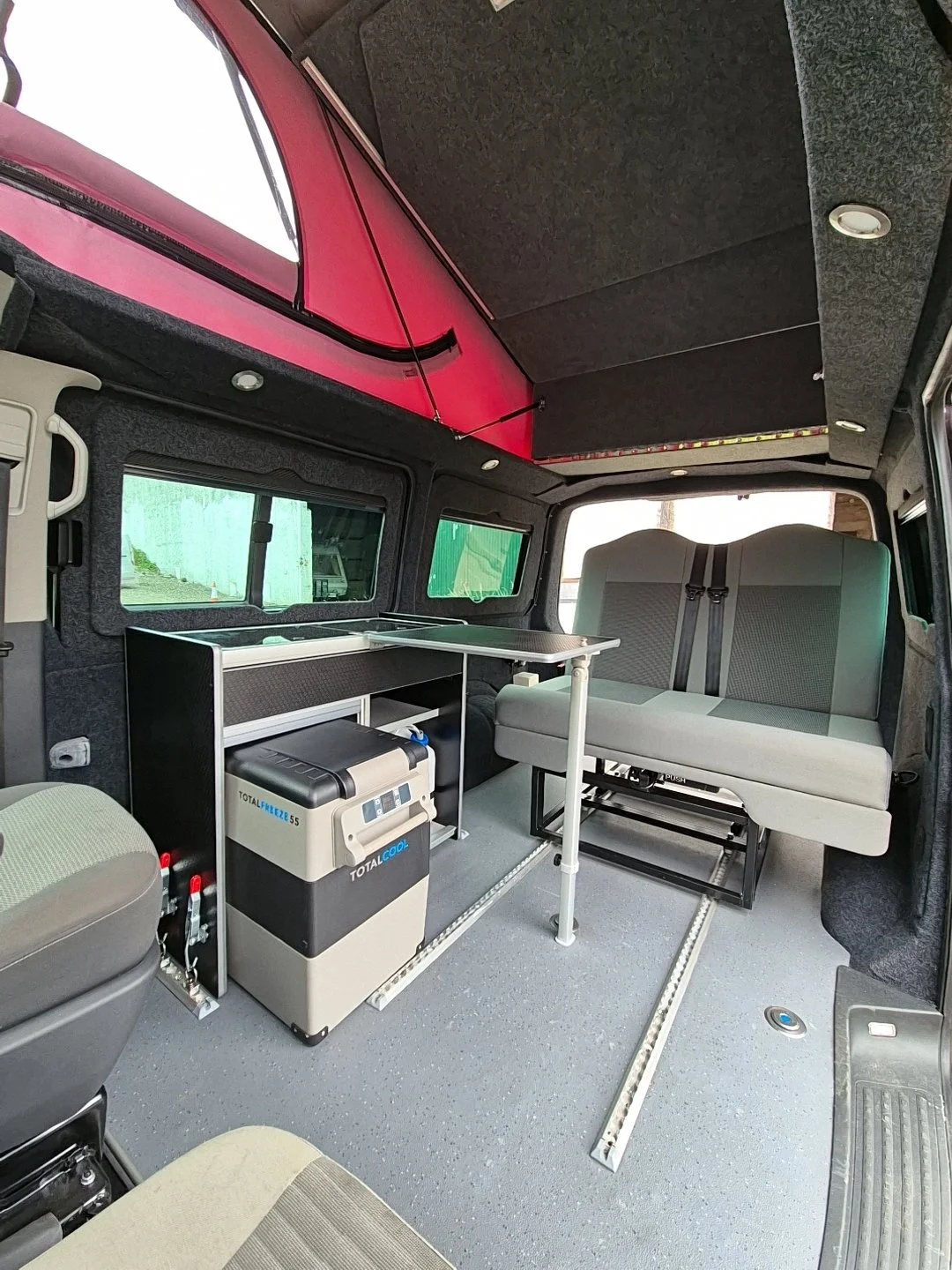

Full removable kitchen pod with twin gas hob, cold water tap and sing with detachable table

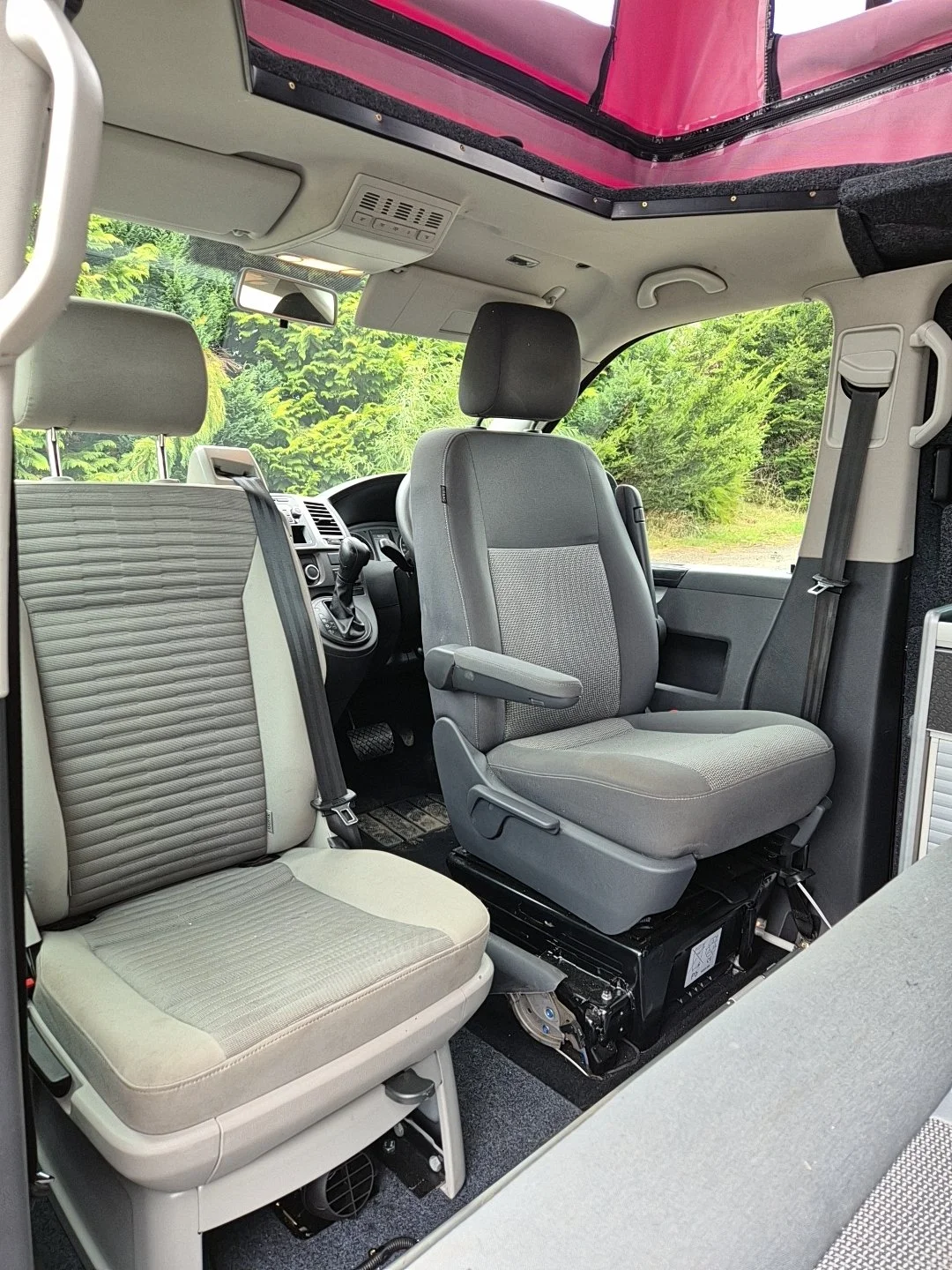

Twin swivel captain seats

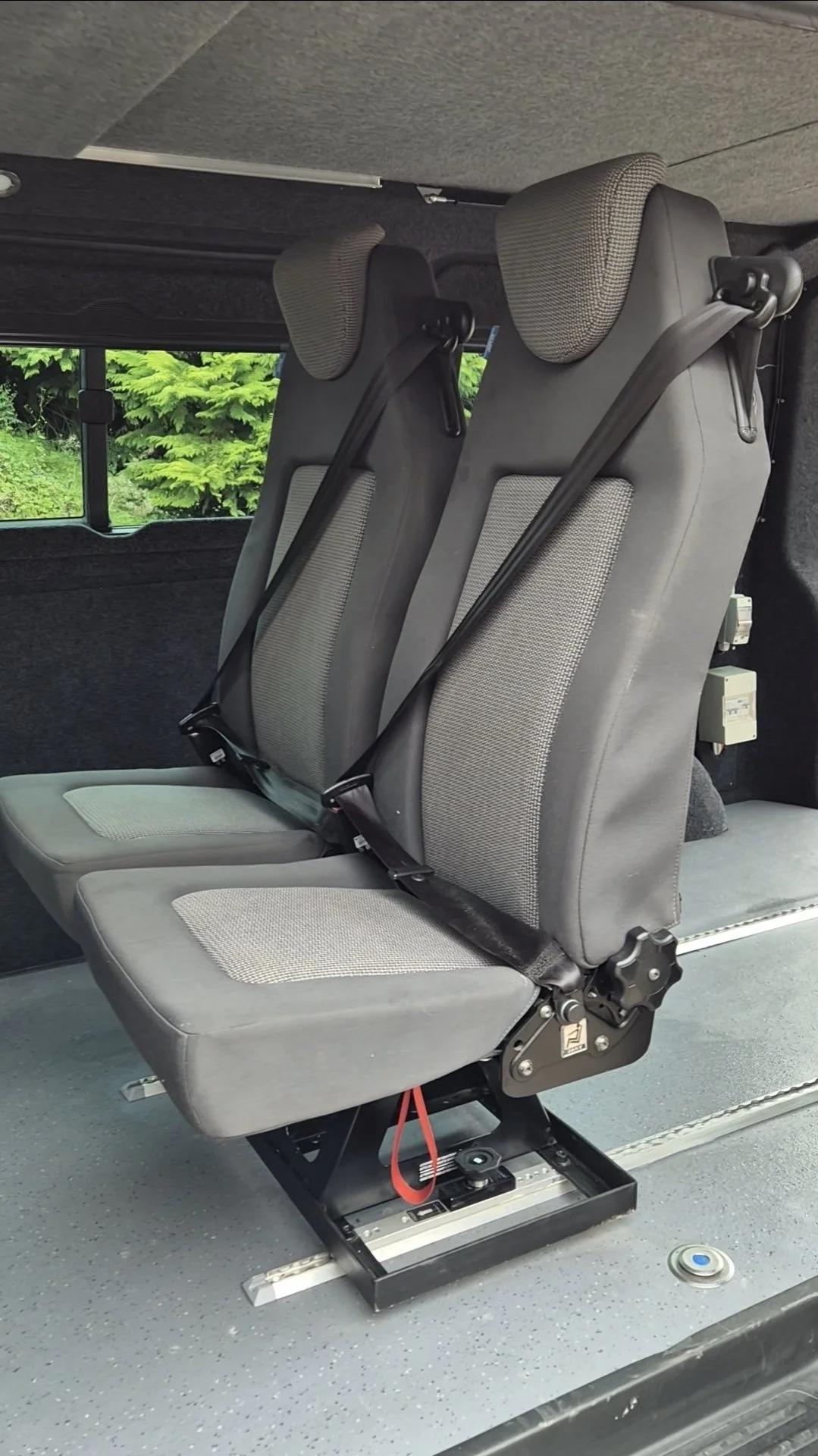

Removable double travelling seat MOT compliant fixed to floor rails

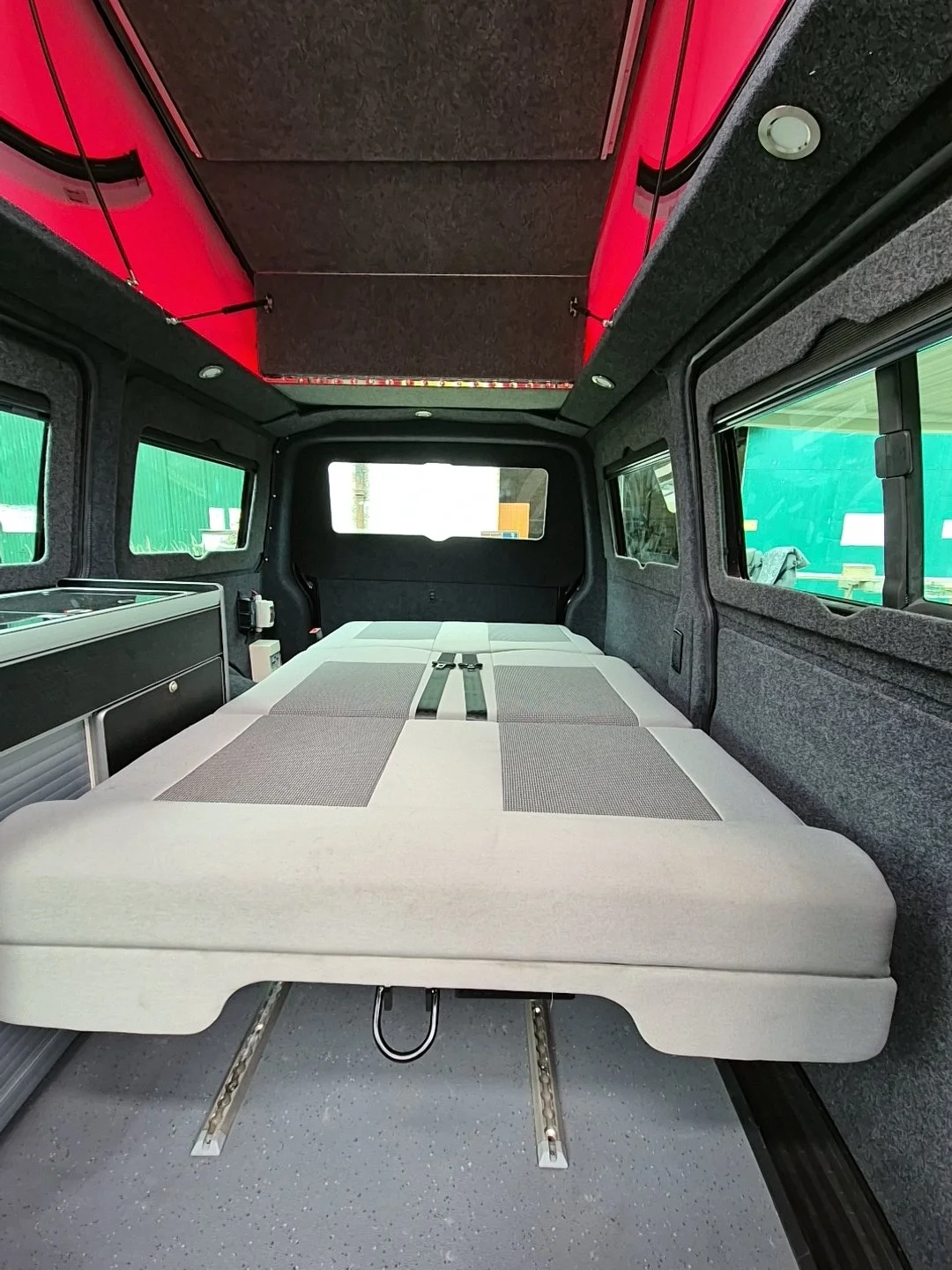

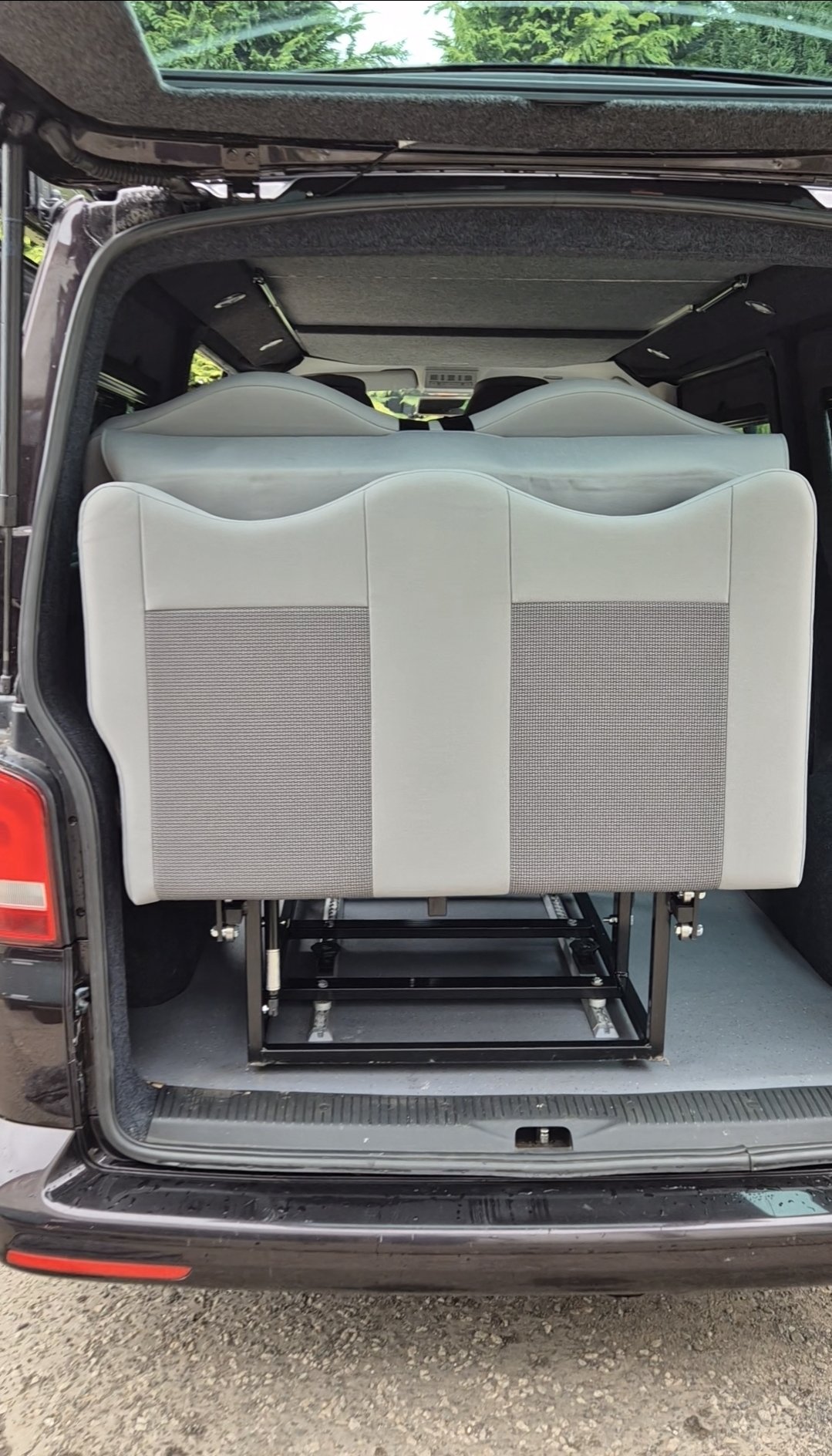

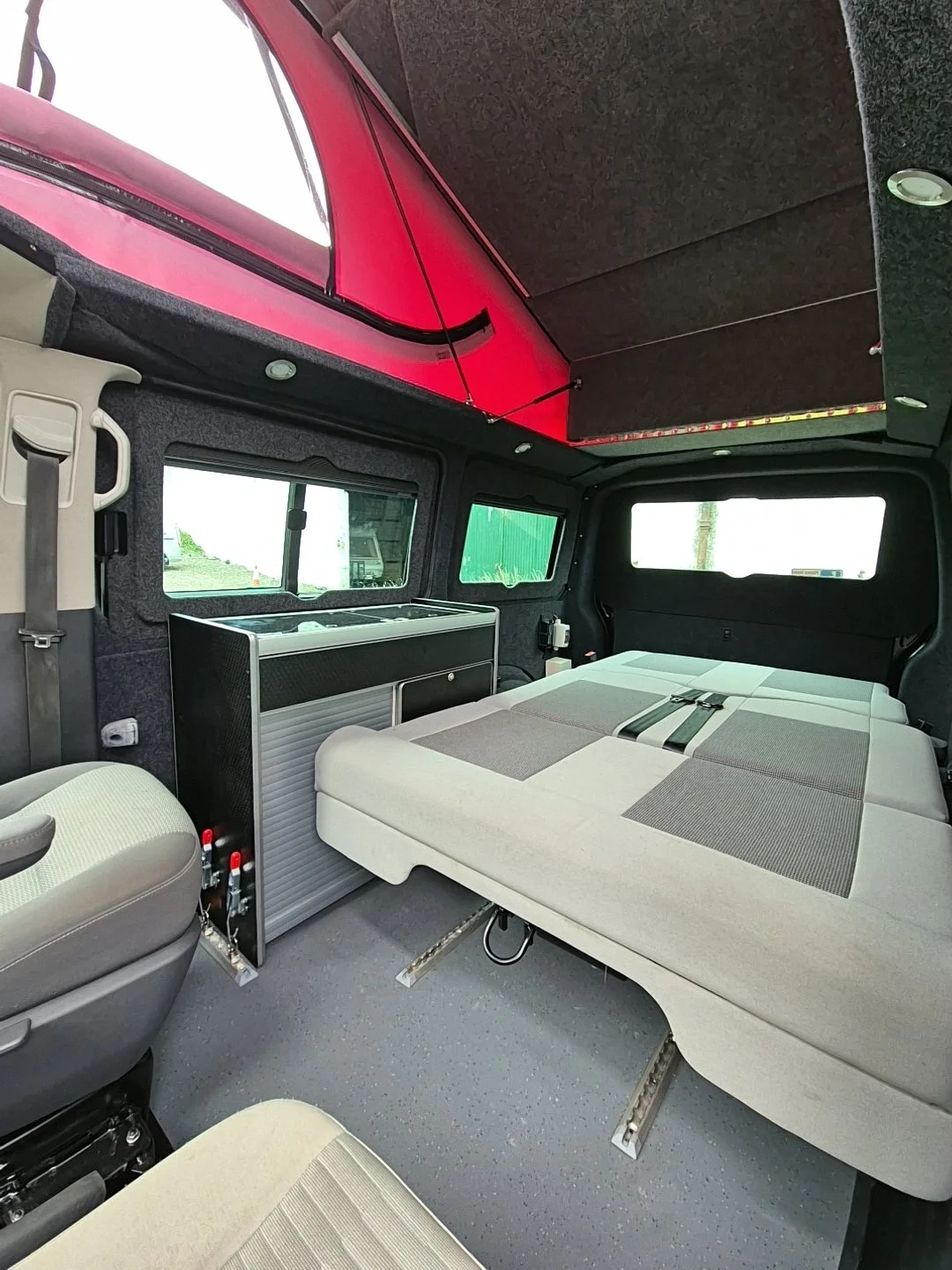

Full rock and roll bed, removable and able to move throughout the van
BUILD DETAILS
12v electrical system, charging via 3 sources
Via vehicle alternator whilst driving
Via solar
Via hook up when on site
1 x 100ah Renogy Lithium batteries
2000w Inverter system with UPS allowing use of 240v equipment whilst off grid, also connected to 240v ring main
240v Hook up point
12v mood lighting throughout
Usb and 12v chagrin points throughout
ELECTRICAL SETUP
