PREVIOUS CONVERSION
TRANSIT CUSTOM

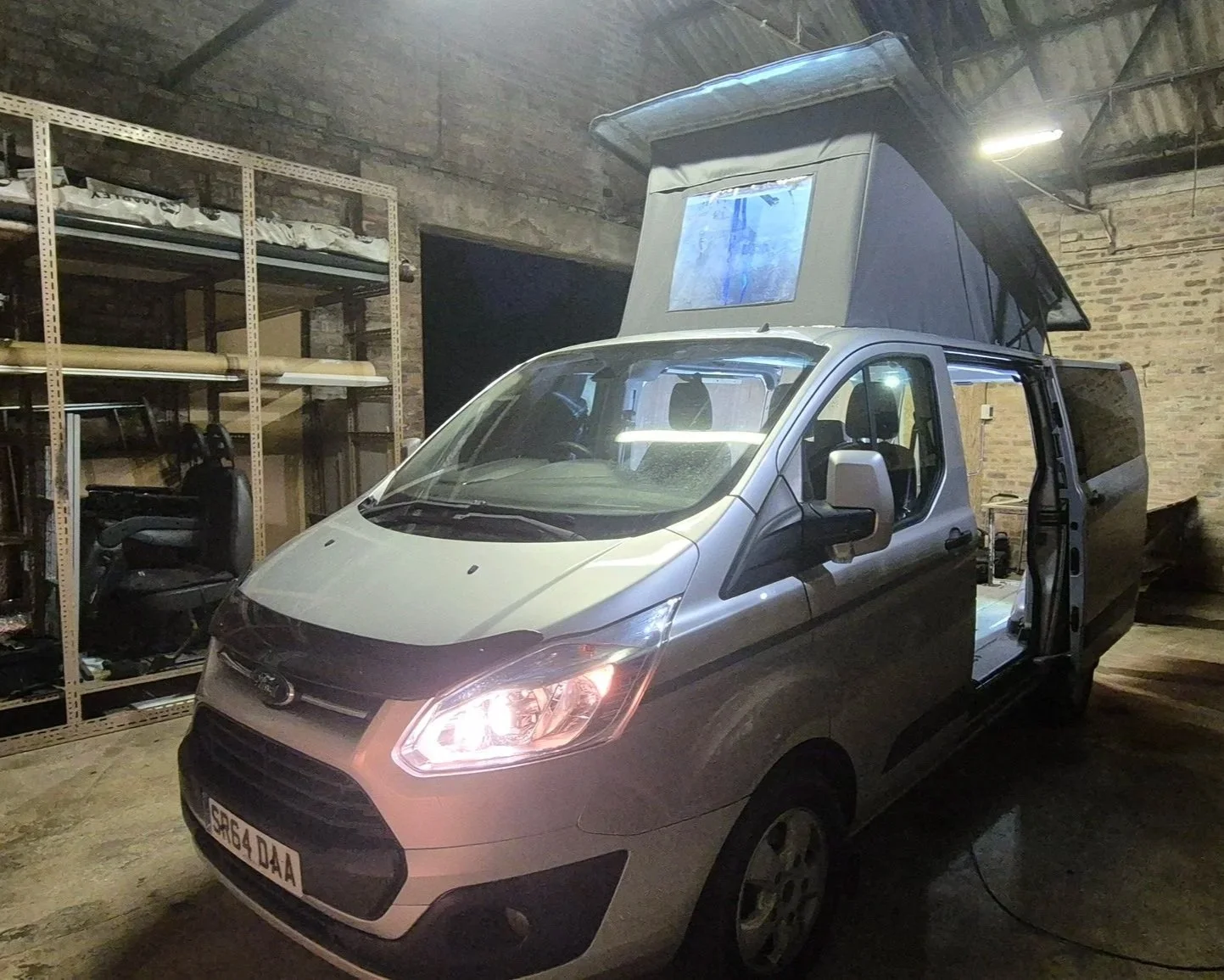

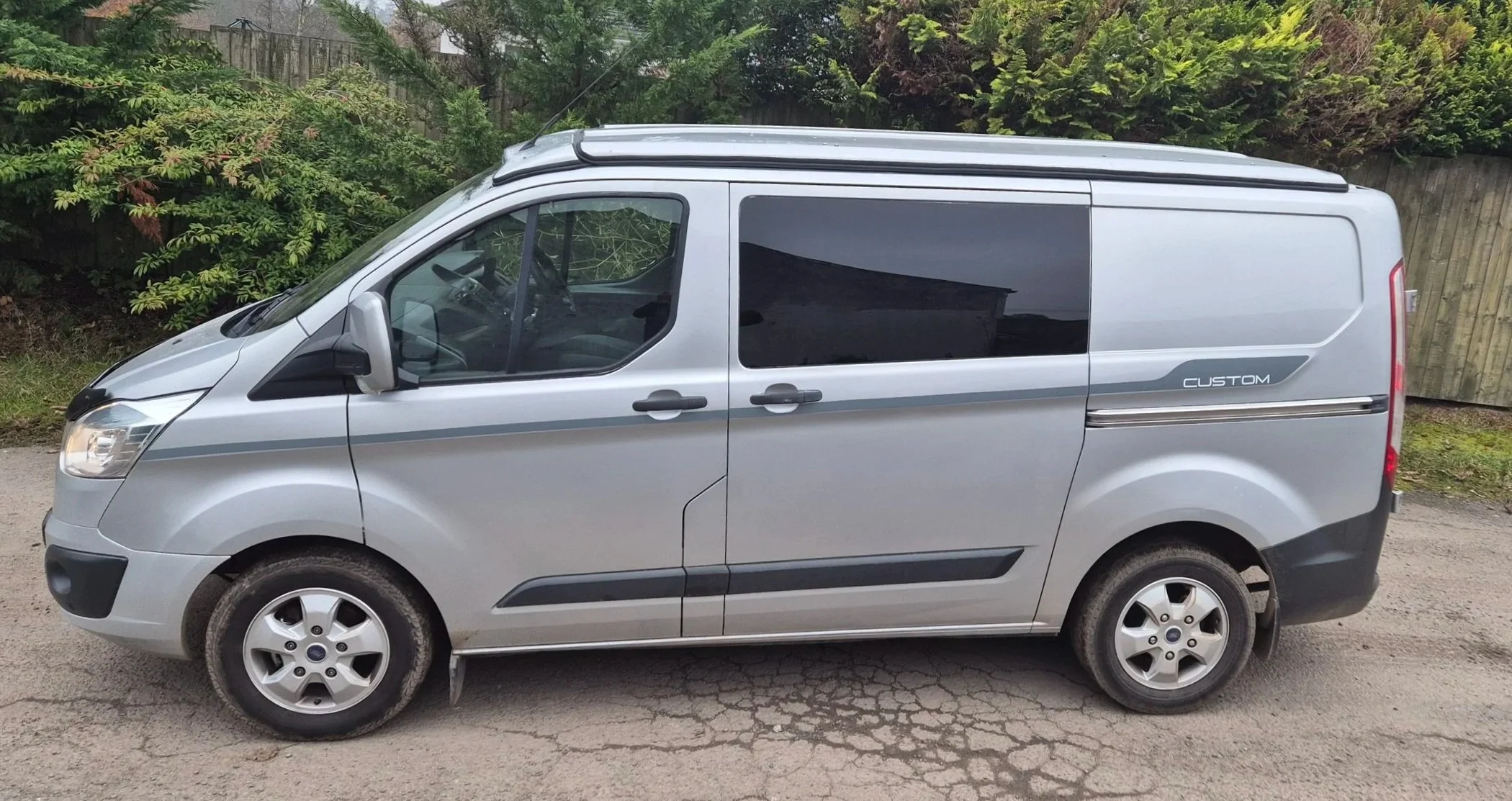

The owner of this 2015 Transit Custom came to Strathearn Camper Co with a bare panel van, looking for a full conversion to sleep four people. Built for fully off grid adventures across the UK, we completed a high end full conversion, from the pop-up roof to the interior build and electrics, following the customers requested bespoke layout.
Type: Full build + skyline pop up roof
Converted: 2024
Sleeps: 4
Full hot and cold water system with underslung fresh and waste water tanks, insulated with heater pads to ensure use all year round
Full shower room with wash hand basin and cassette toilet, all enclosed in a one piece shower pod to ensure no risk of water leaks
Full Kitchen with Diesel cooker which lso provides option of blow hot air heater, Full sized sink with hot and cold water and 85l compressor fridge.
2 x Maxxarfans fitted to roof to help control temperature in warm climates

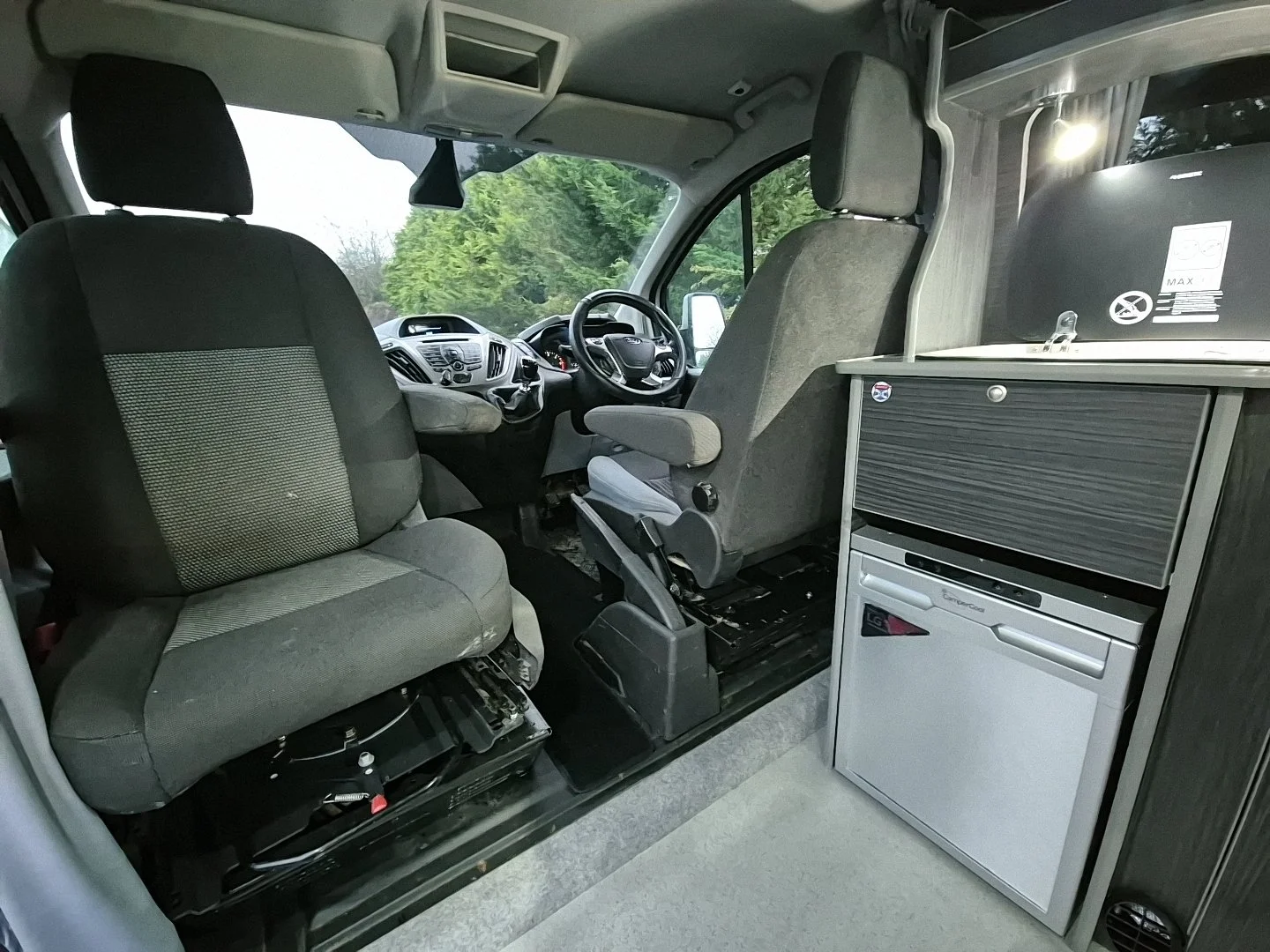

Twin swivel captain seats
Removable third travelling seat MOT compliant fixed to floor rails
Full sized bench seat which creates a single bed when drivers swivel seat is swiveled to the rear

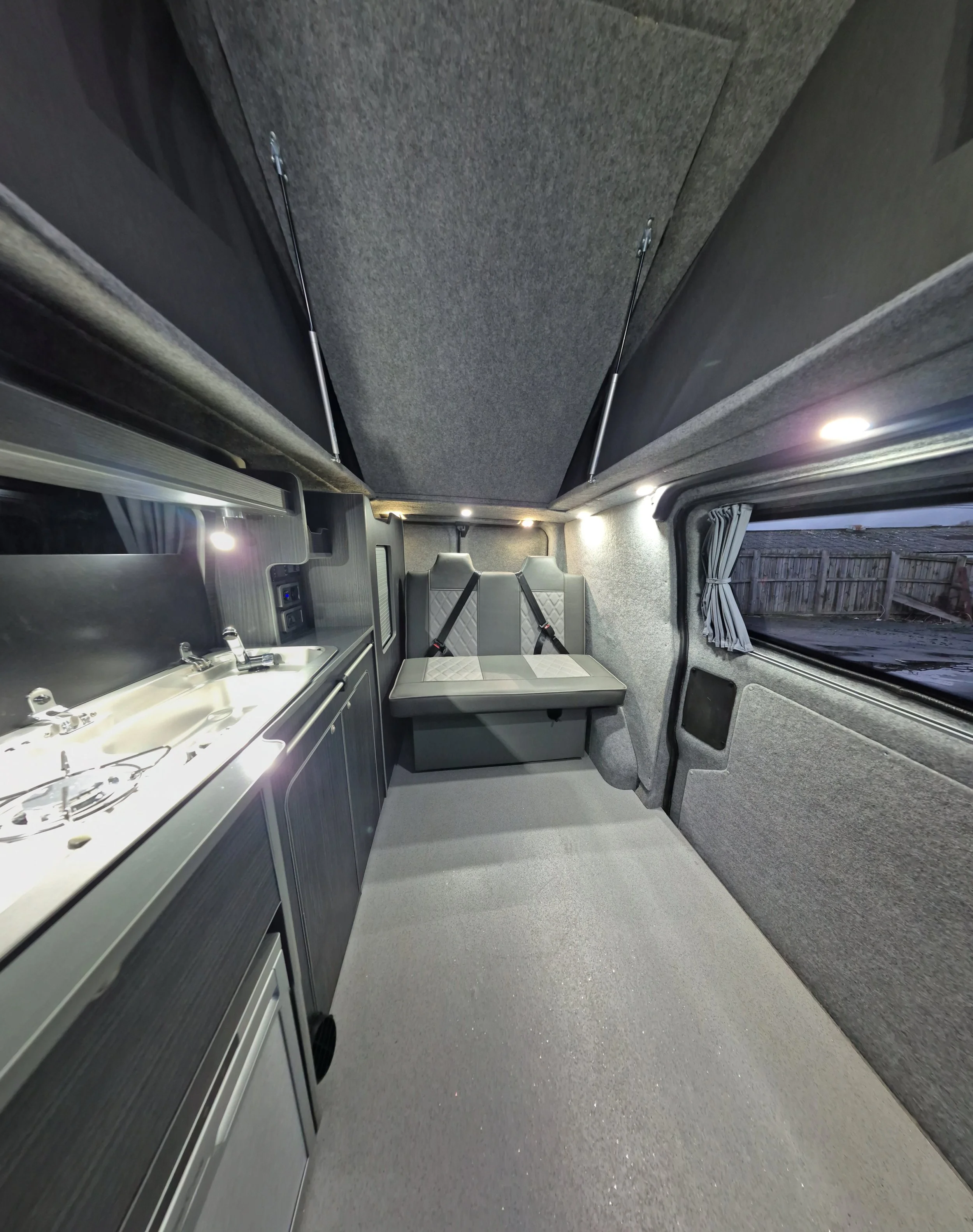

Full sized fixed double bed
Storage space throughout with a massive garage under the bed to provide storage space for bikes etc
BUILD DETAILS
Full off grid capability
12v electrical system, charging via 3 sources
Via vehicle alternator whils driving

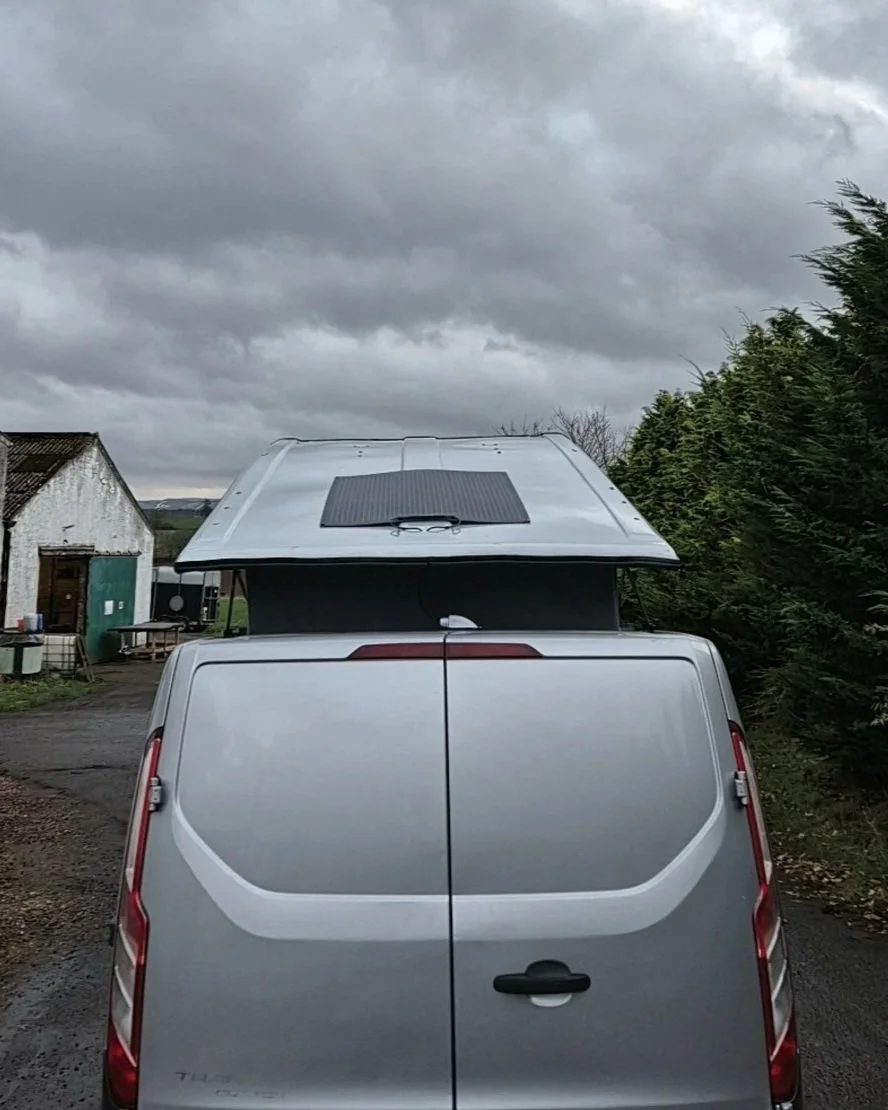

Via solar (total of 350w)
Via hook up when on site
2 x 200ah Renogy Lithium batteries
2000w Inverter system with UPS allowing use of 240v equipment whilst off grid, also connected to 240v ring main
240v Hook up point
12v mood lighting throughout
Usb and 12v chagrin points throughout
All electrics managed by Sargent motorhome electrical management system
6kw diesel combi heater, digitally controlled hot air heating and 20l hot water boiler system, BT enabled
