PREVIOUS CONVERSION
SWB TRANSIT CUSTOM
The brief was to build a four berth campervan on a short wheel base chassis. The owner requested a full van conversion suitable for off grid adventures. This build had it all, from a striking blue skyline pop up with matching blinds to a high end kitchen and storage solution unit.
Type: Full build
Converted: 2024
Sleeps: 4
Full off grid capability
Fully insulated
2kw diesel combi heater,digitally controlled hot air heating, BT enabled and fed from vehicle main fuel tank
cold water system with underslung fresh and waste water tanks, insulated with heater pads to ensure use all year round

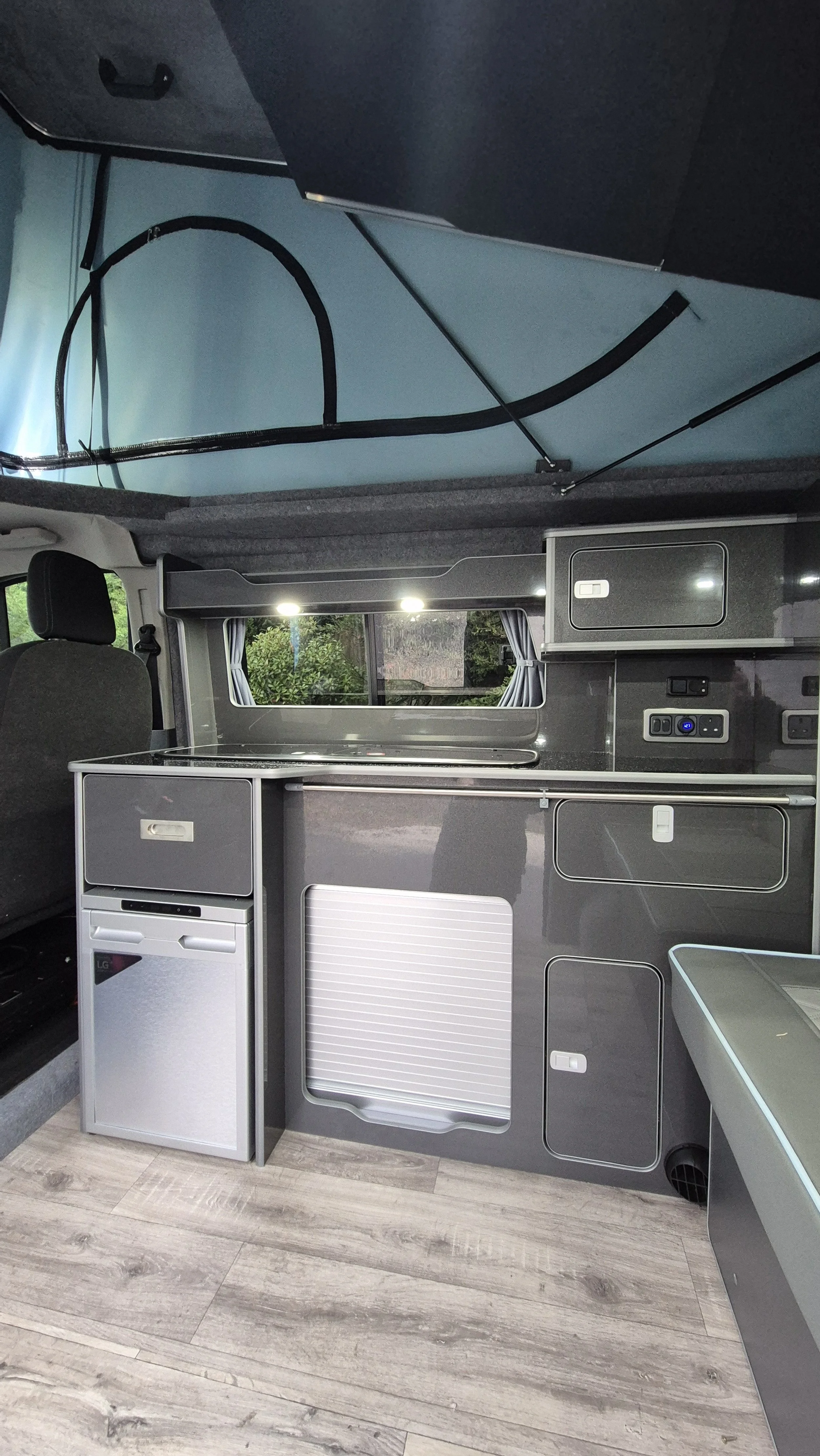

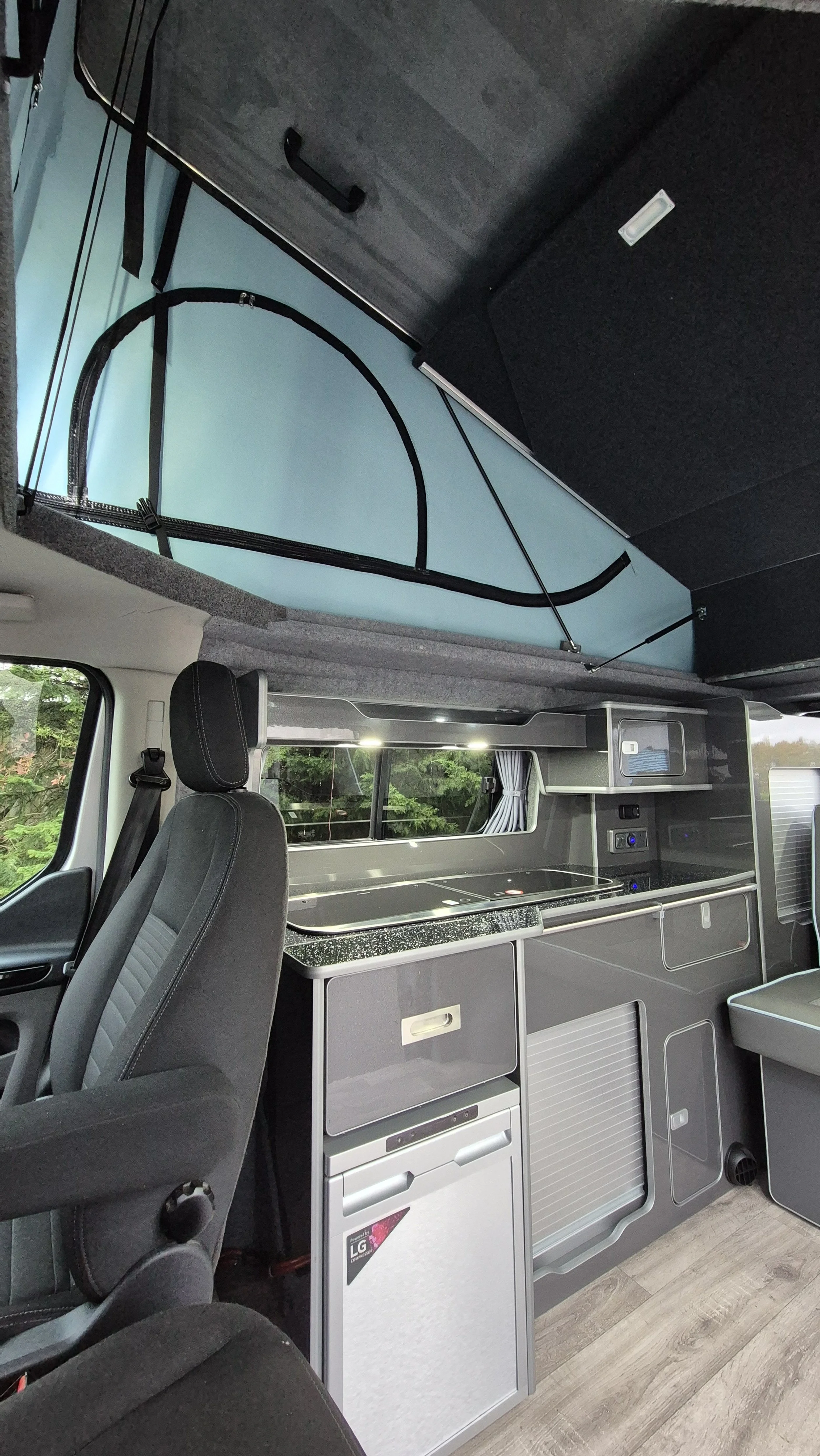

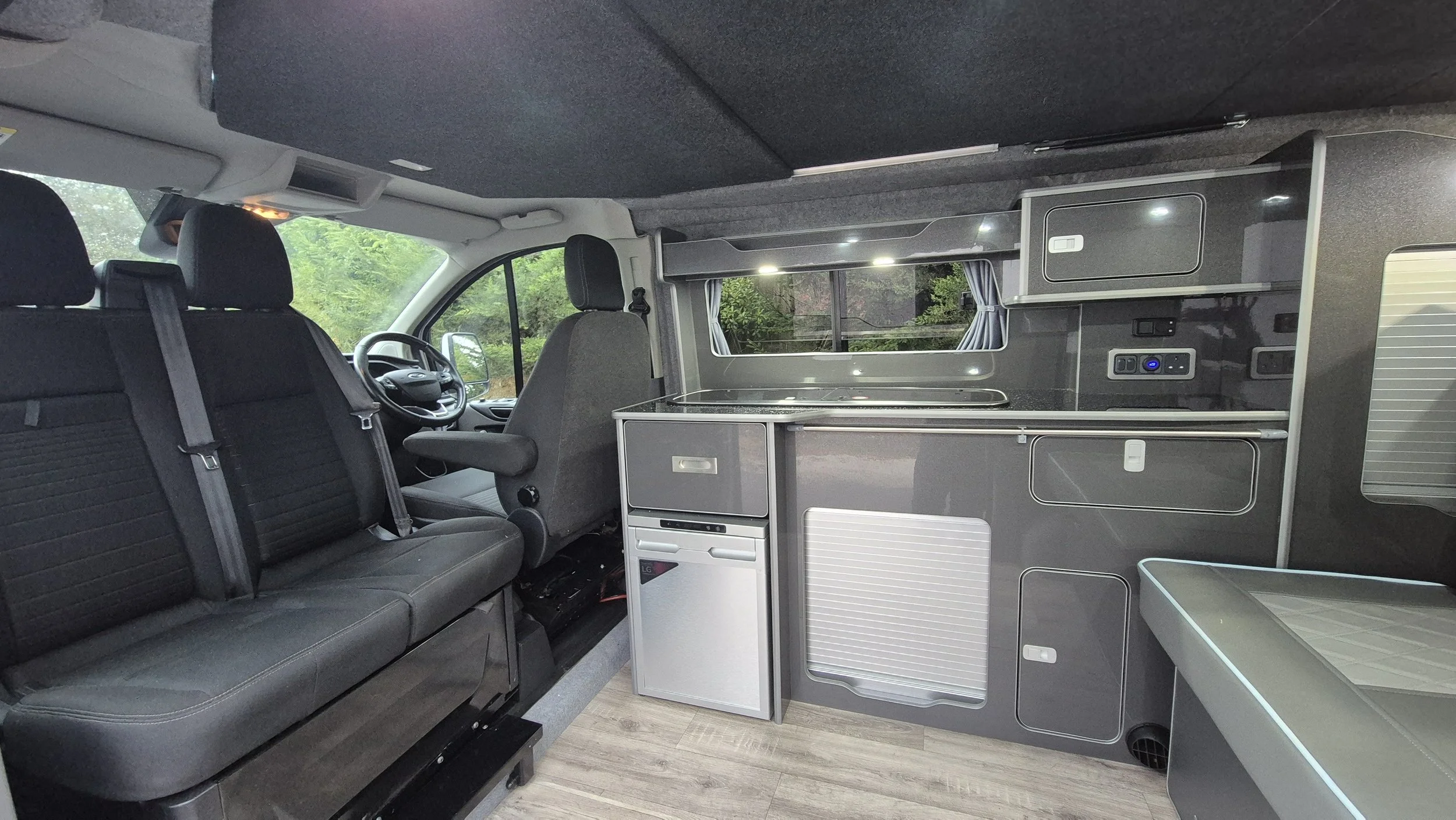

Full Kitchen with twin gas hob, Full sized sink with cold water and 55l compressor fridge.

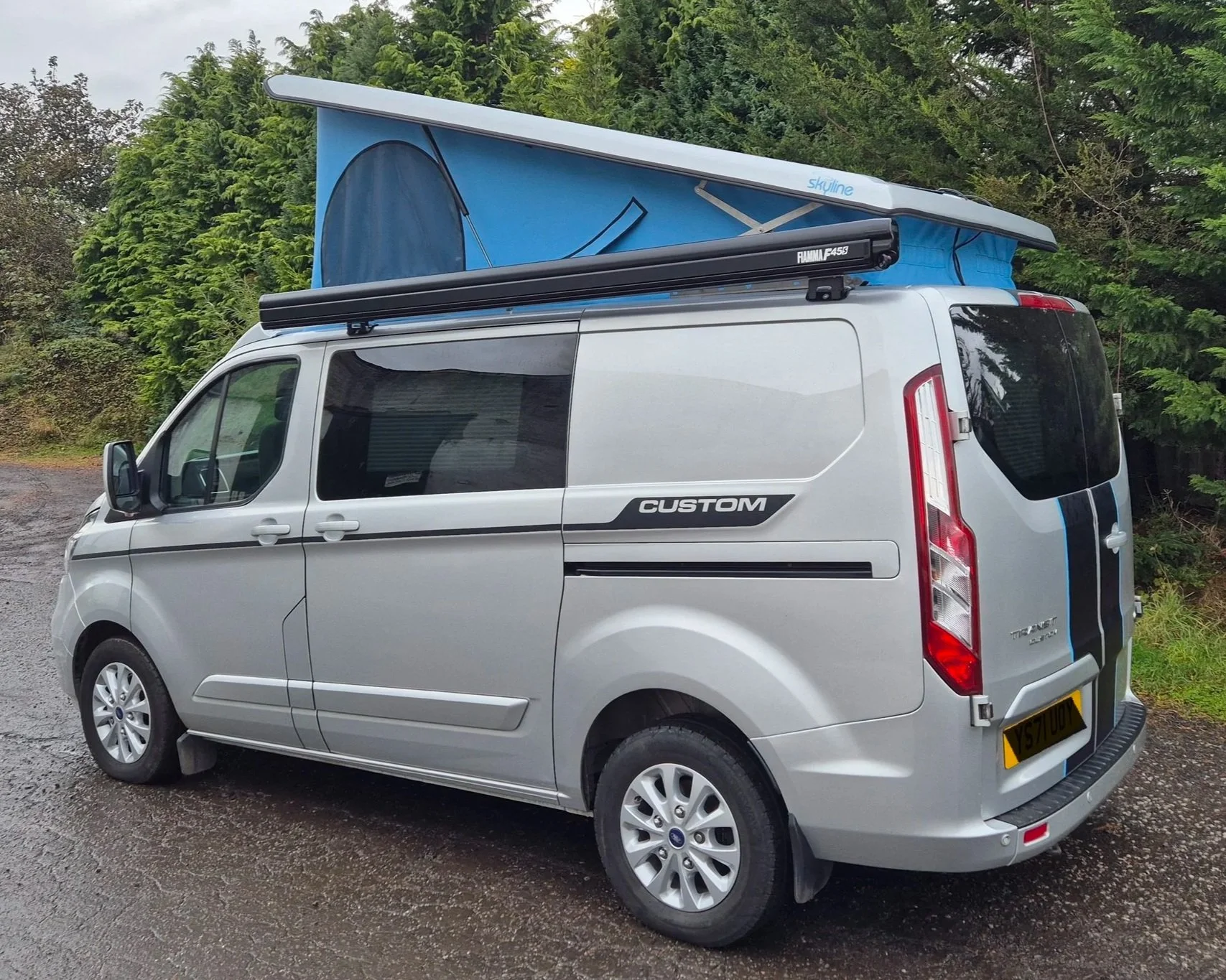

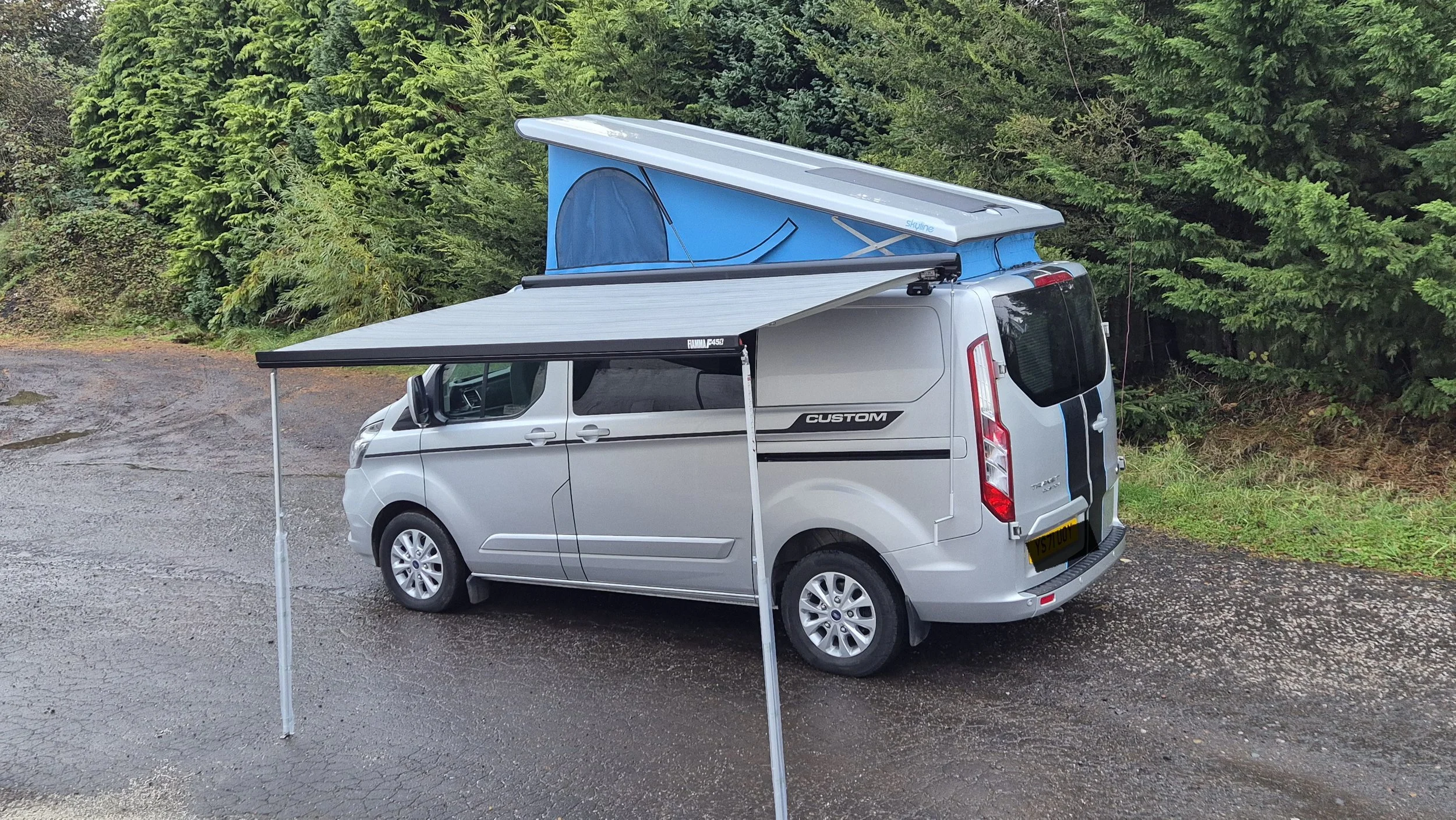

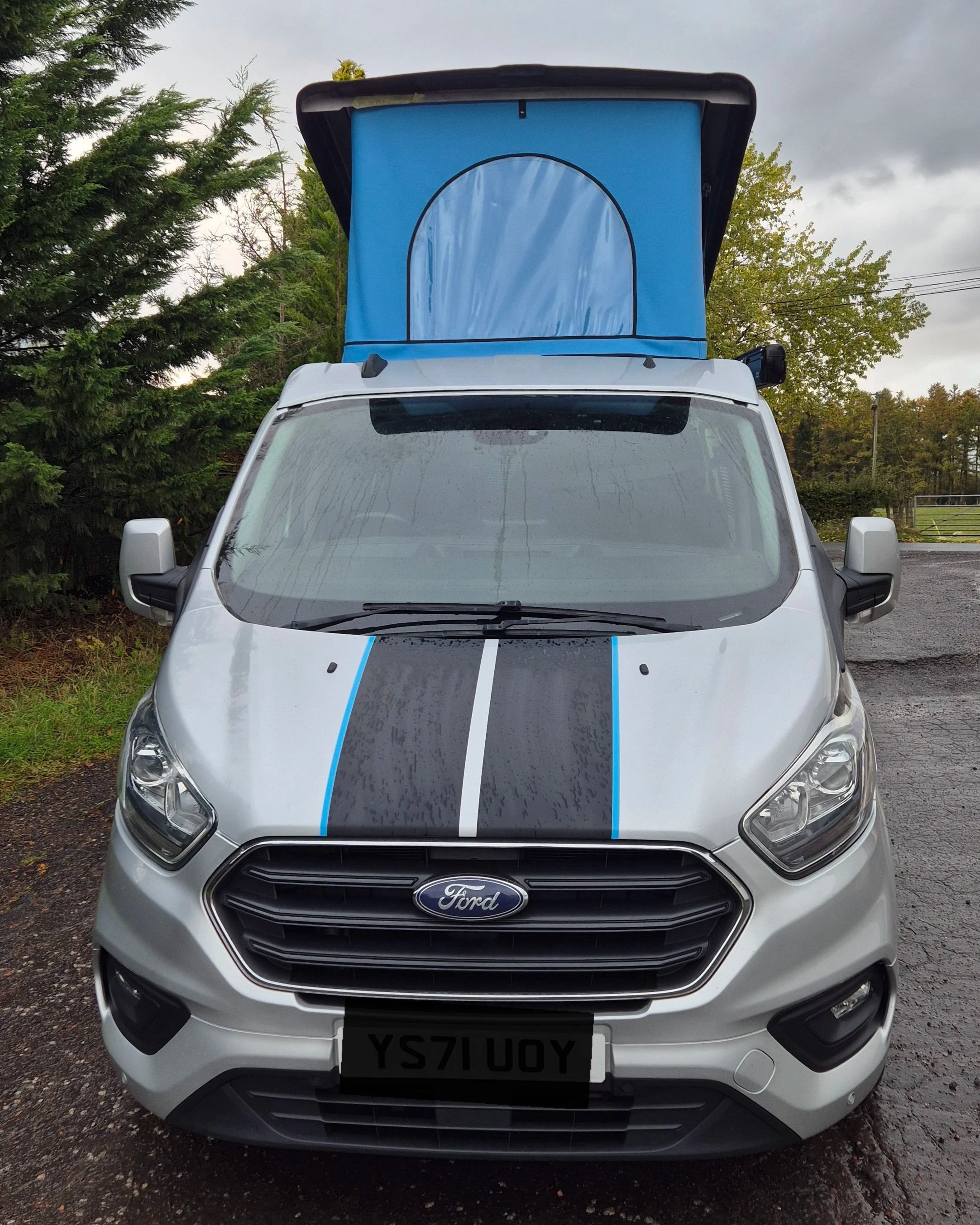

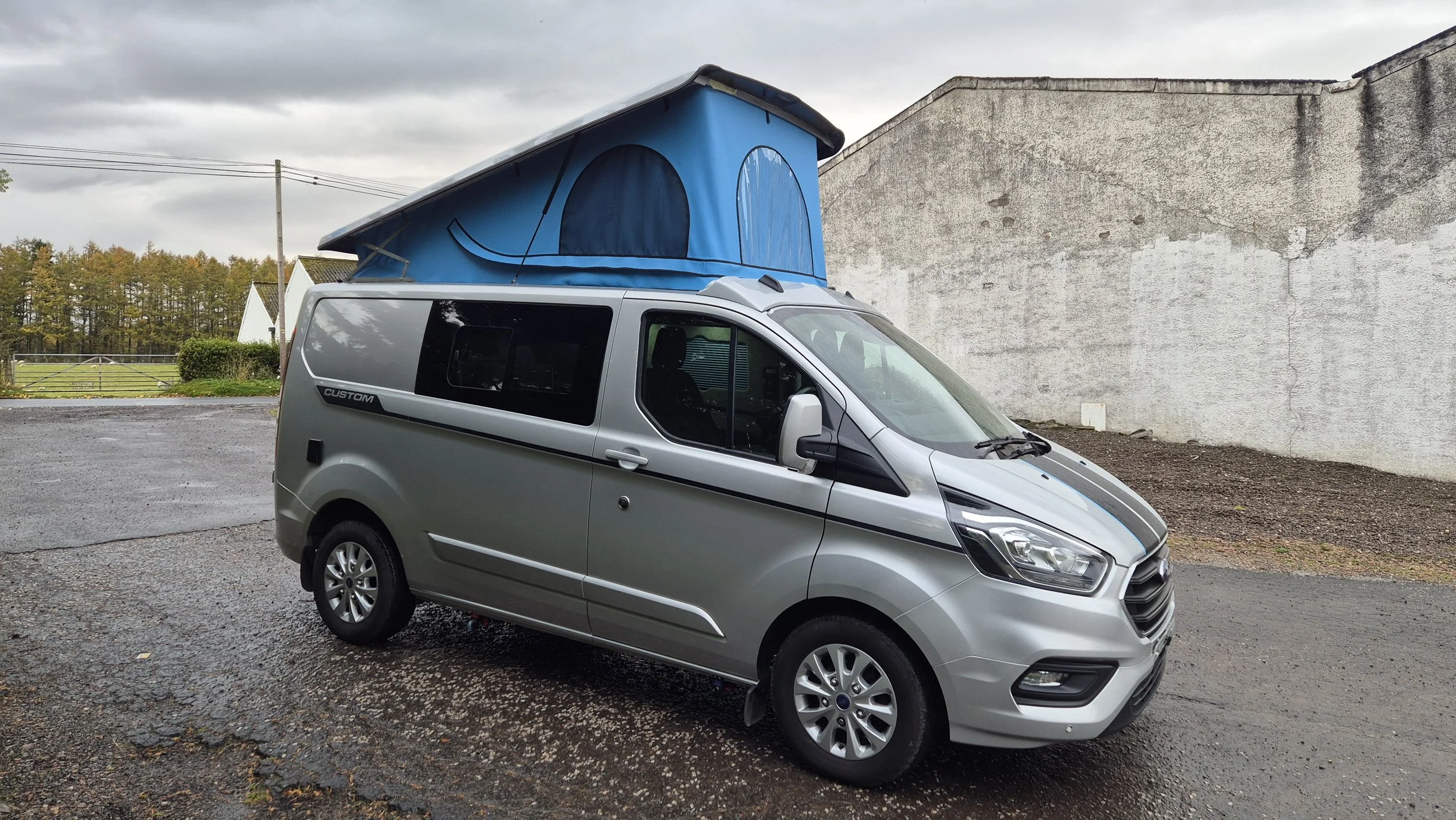

Top of the range Skyline pop top roof with BI Fold Bed, slider and scenic canopy
Sliding twin swivel passenger seats

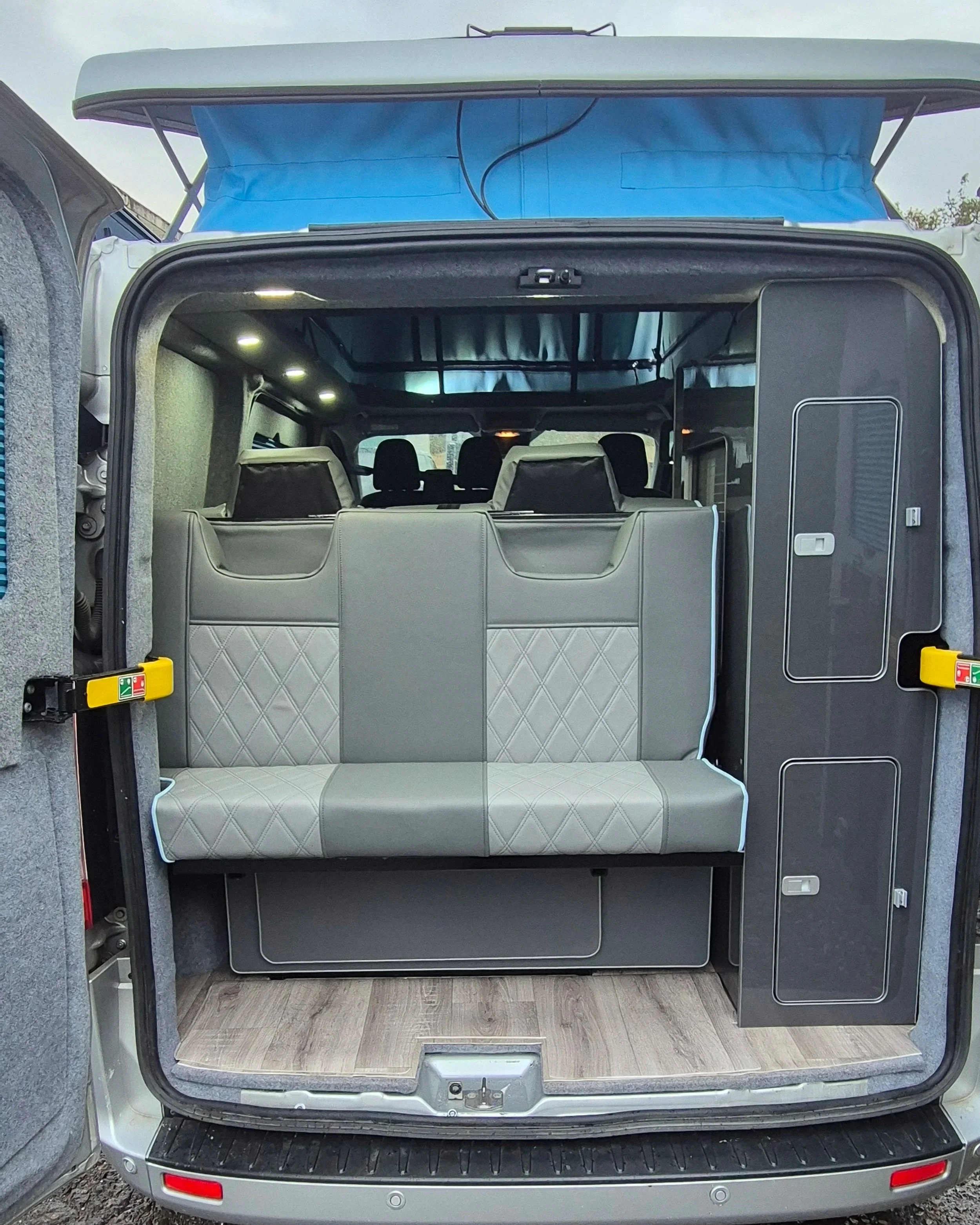

3rd lounge seat to create comfortable seating and dining area

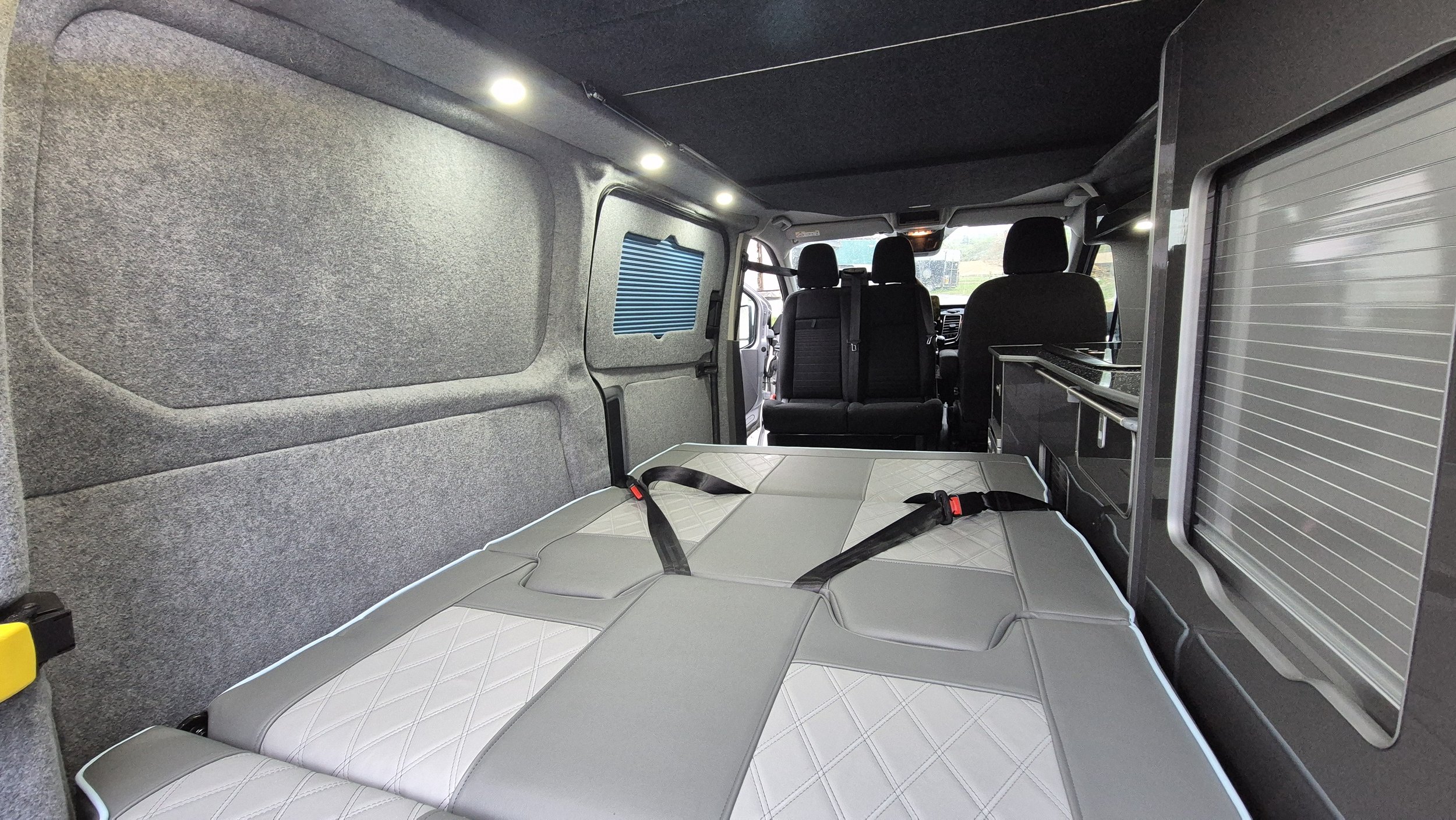

Full sized double rock and roll bed
Vanshade blackout blinds throughout
BUILD DETAILS
12v electrical system, charging via 3 sources
Via vehicle alternator whilst driving
Via solar (total of 150w)
Via hook up when on site
1 x 120ah batteries
2000w Inverter system with UPS allowing use of 240v equipment whilst off grid, also connected to 240v ring main
240v Hook up point
12v mood lighting throughout
Usb and 12v chagrin points throughout
ELECTRICAL SETUP
