LWB Ford Transit
The brief was to build a high spec two berth campervan with full off grid capability in a LWB chassis. The owner wanted a camper that they could travel throughout the UK in comfort. They requested a fixed bed with storage underneath for two mountain bikes and have a full sized shower/bathroom.
Type: Full build
Converted: 2025
Sleeps: 2
Full off grid capability

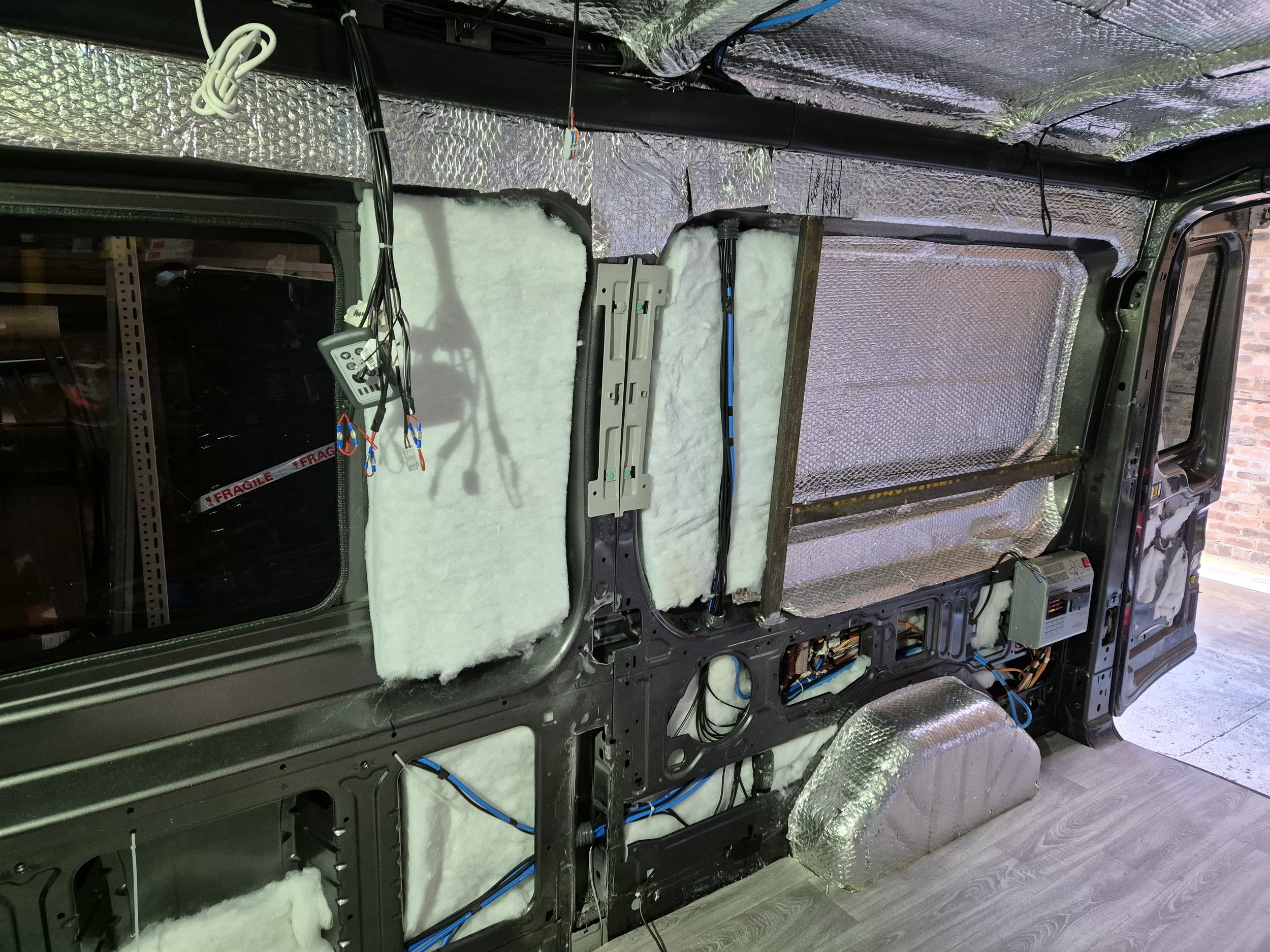

Fully insulated
Full hot and cold water system with underslung fresh and waste water tanks

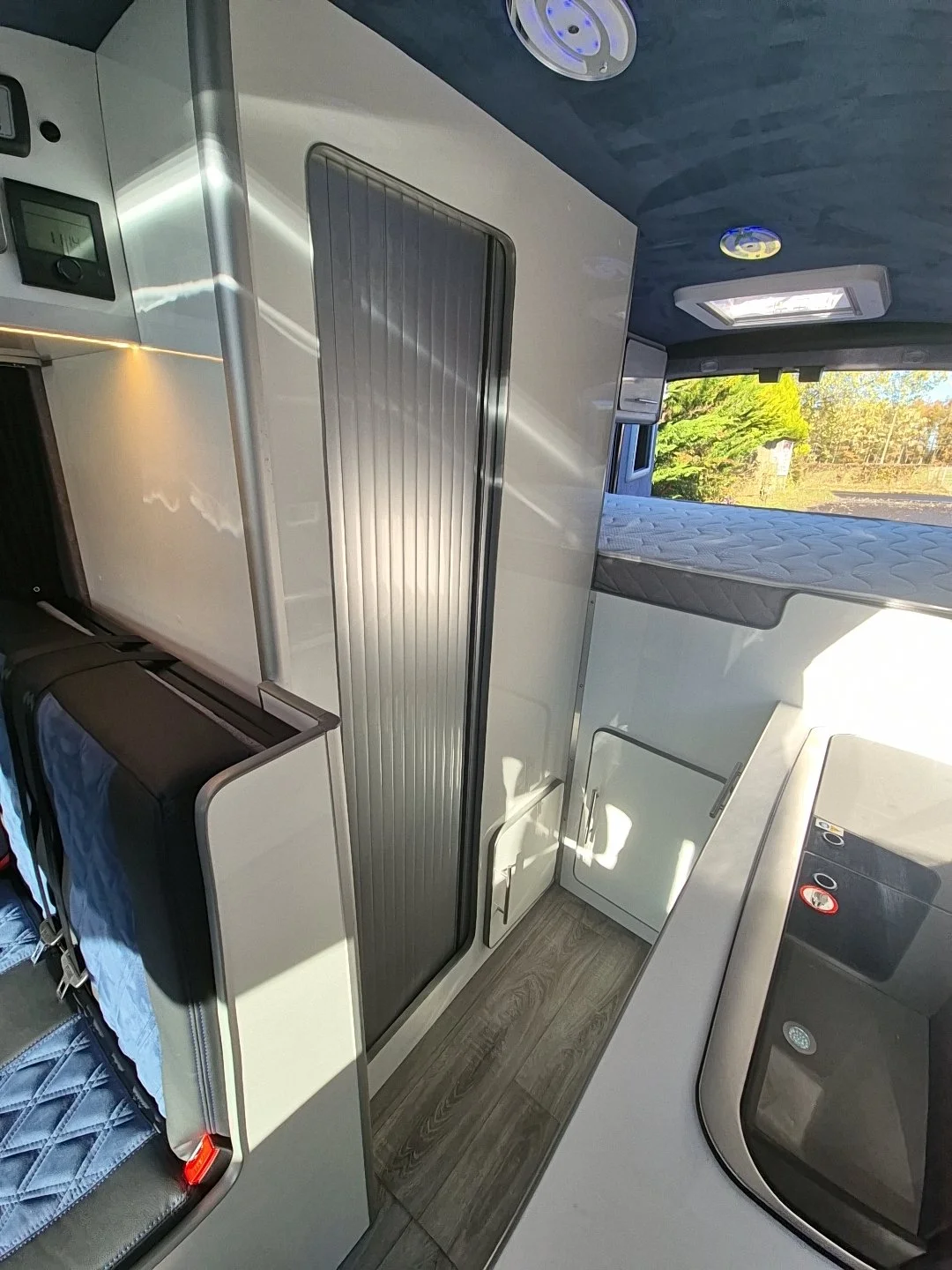

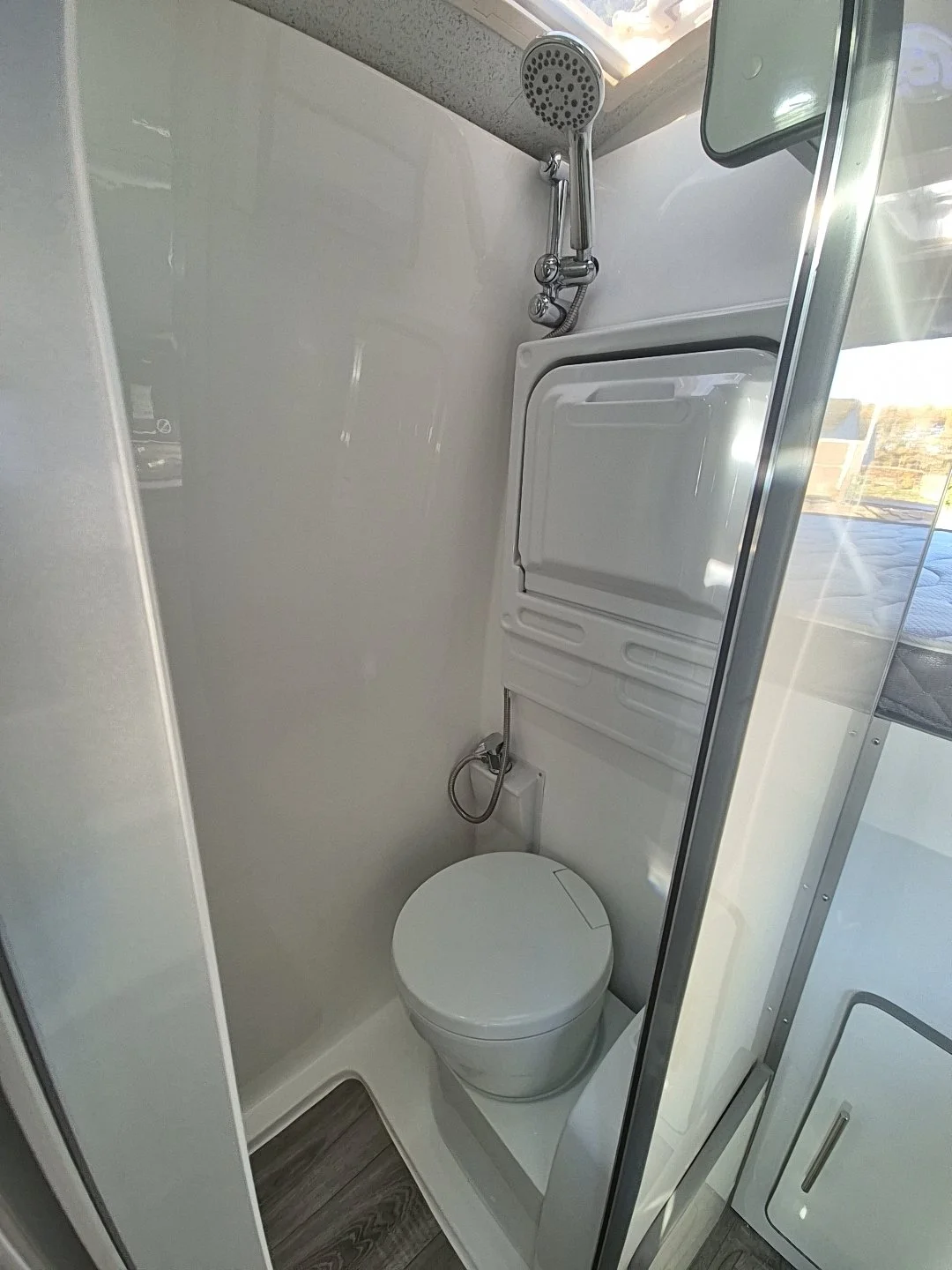

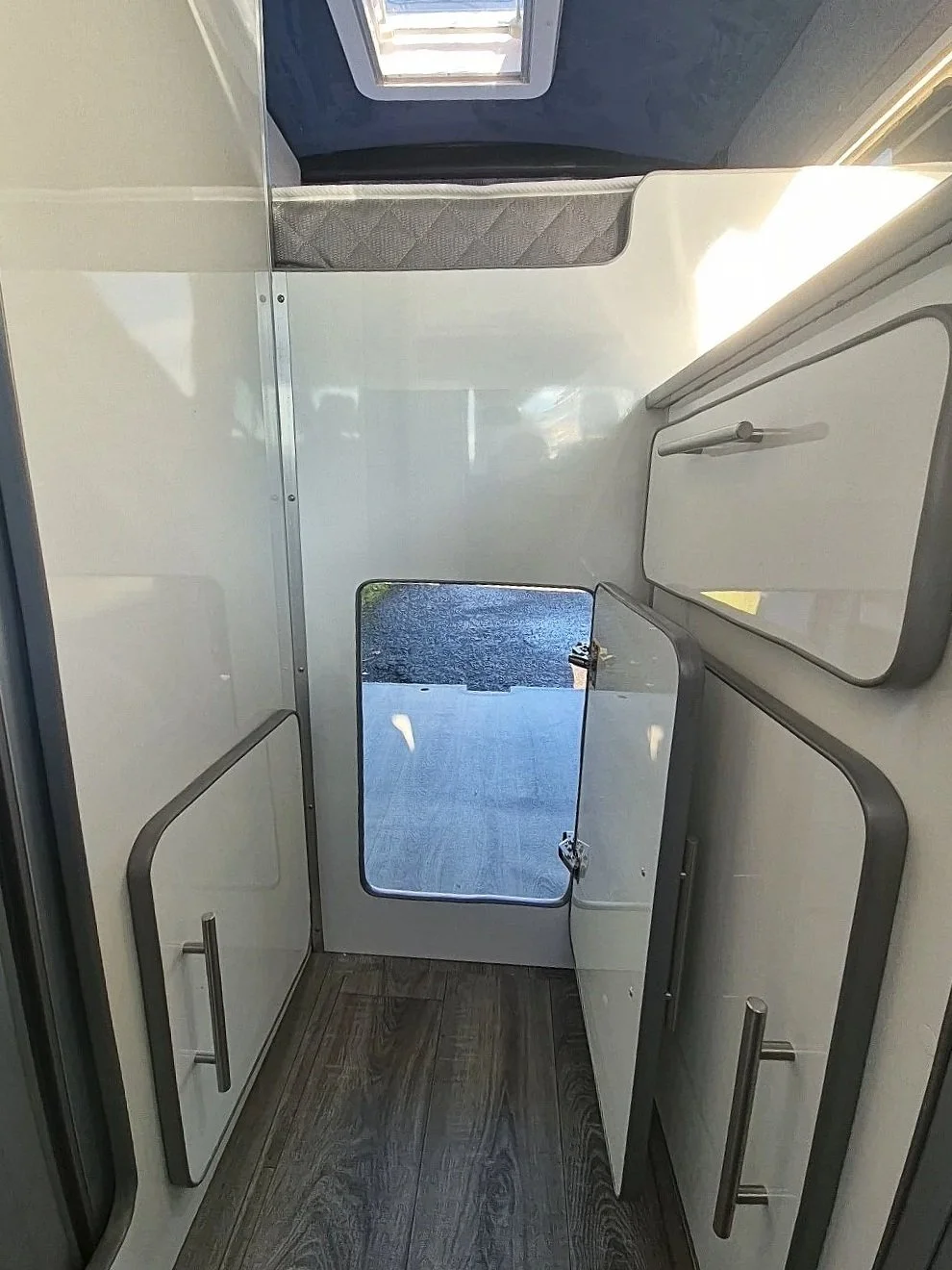

Full shower room with wash hand basin and cassette toilet, all enclosed in a one piece shower pod to ensure no risk of water leaks

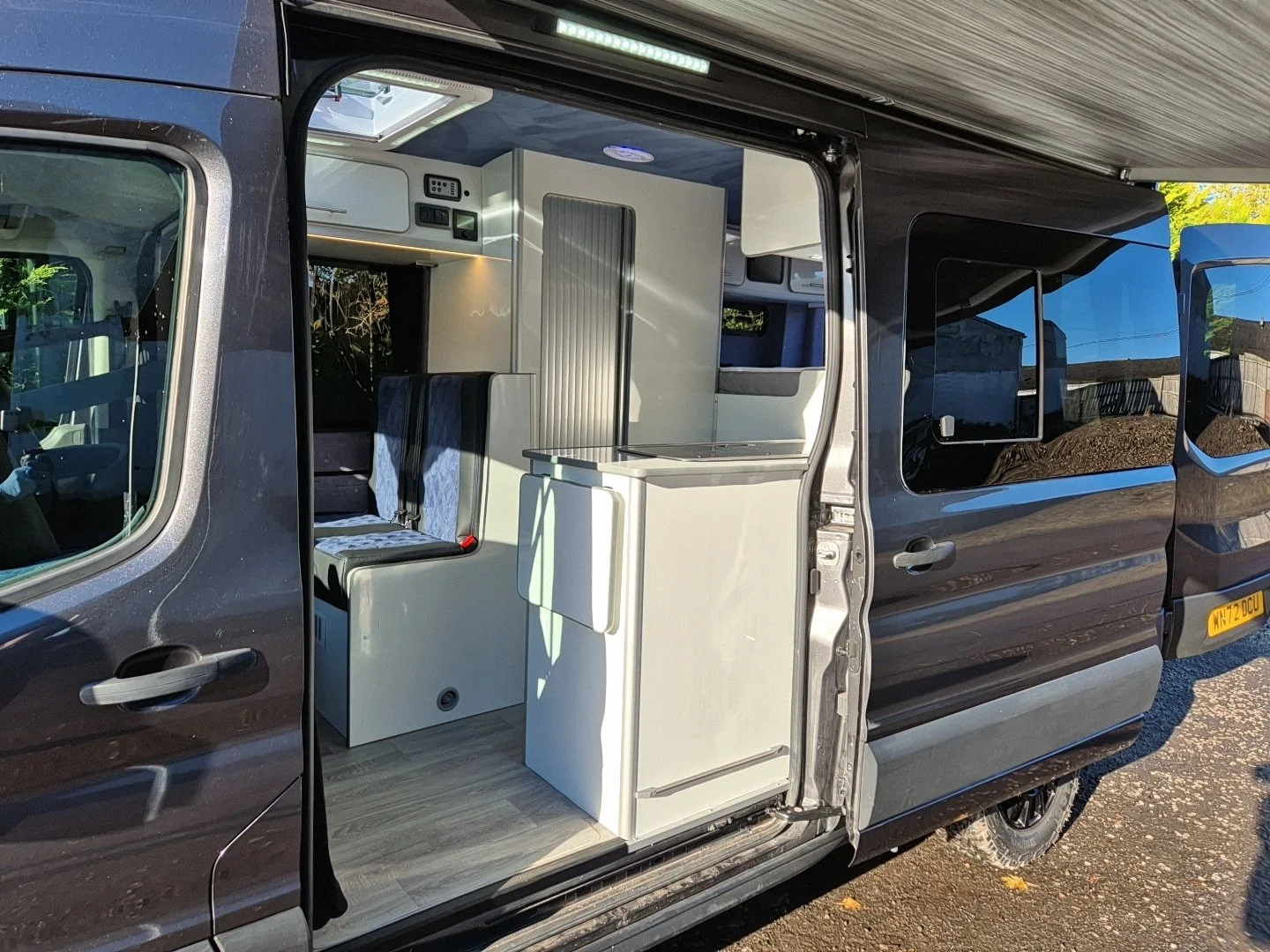

Full Kitchen with twin gas hob. Full sized sink with hot and cold water and 65l compressor fridge
2 x skylight fitted to roof to help control temperature in warm climates

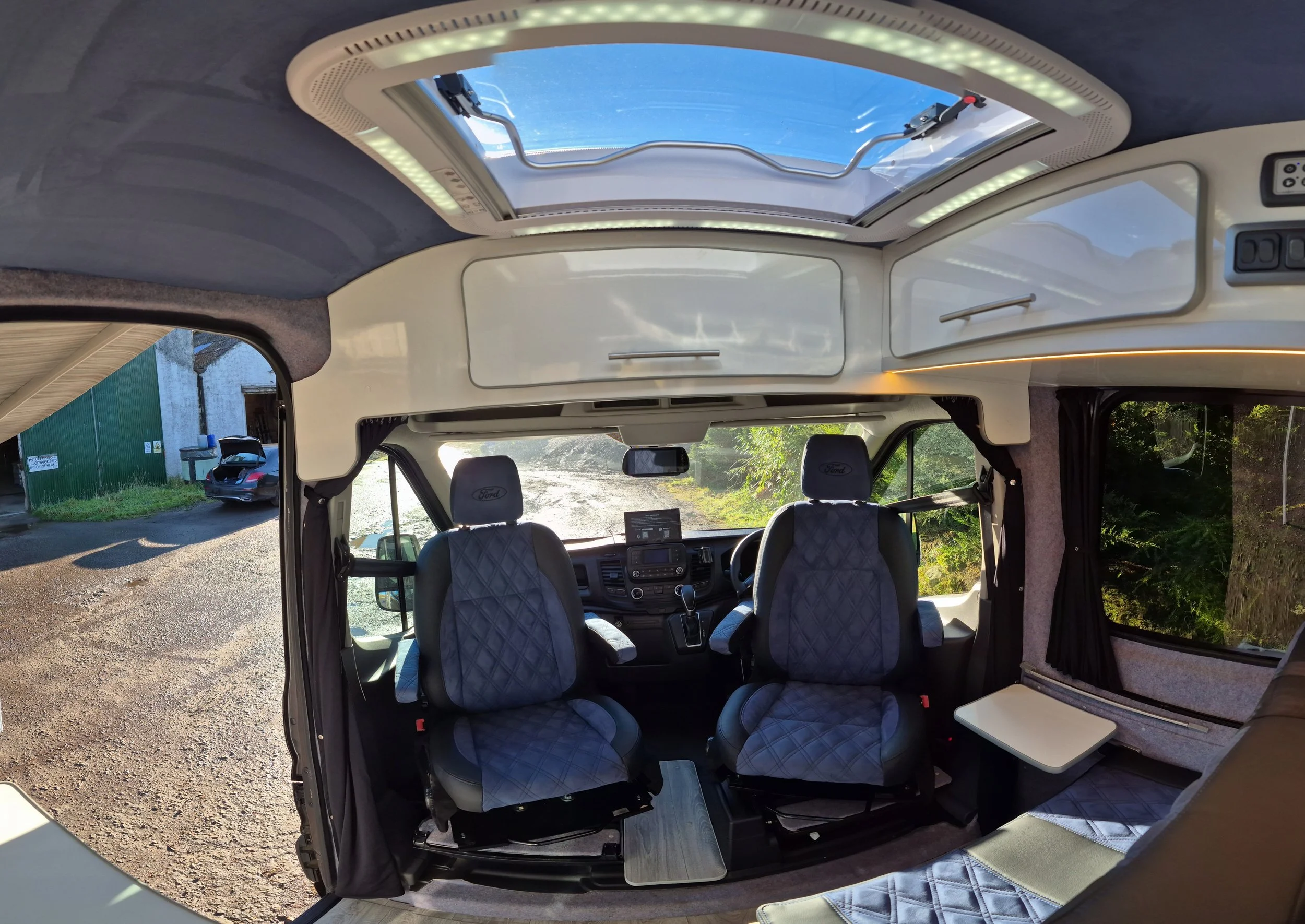

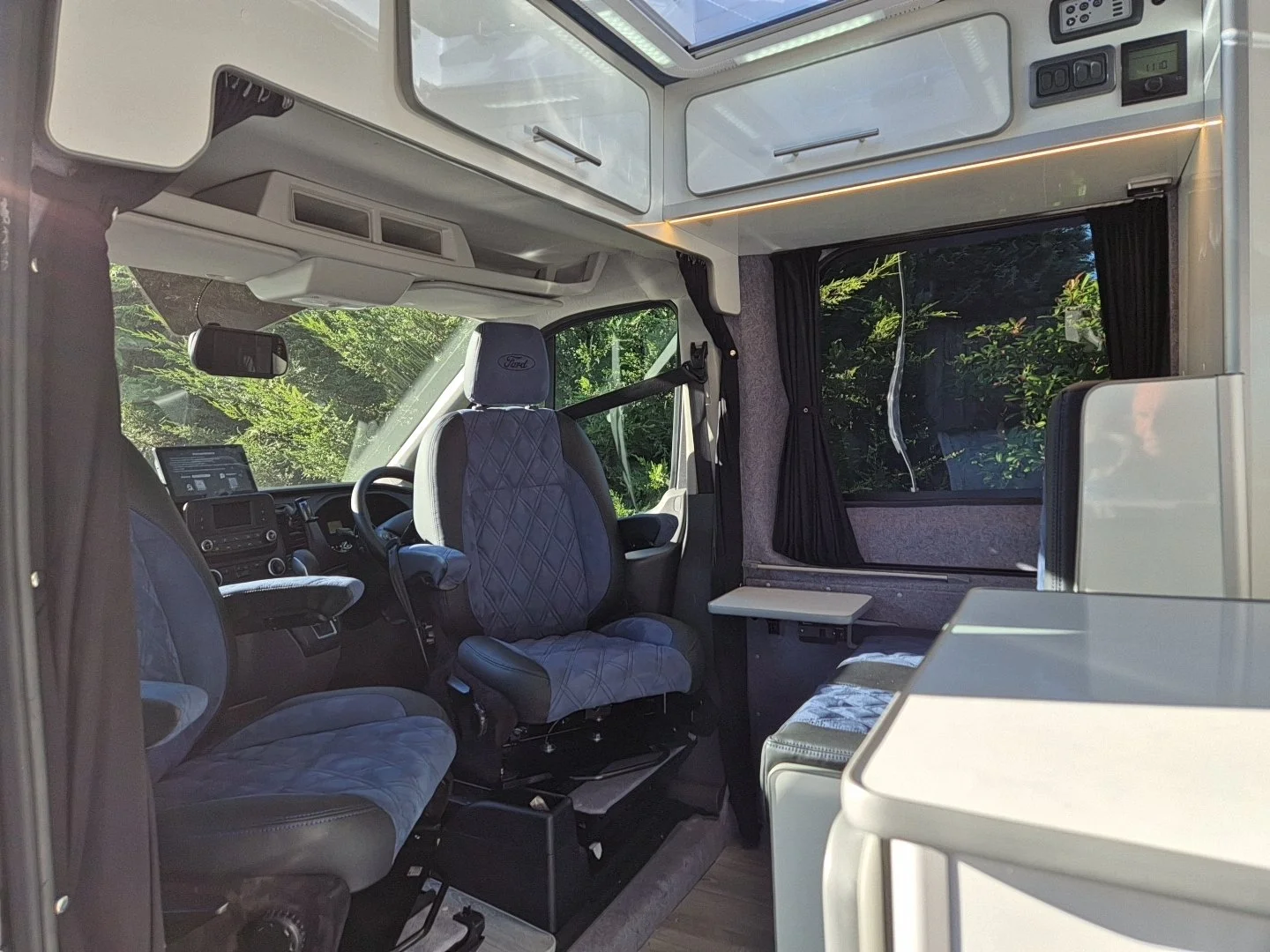

Twin swivel captain seats

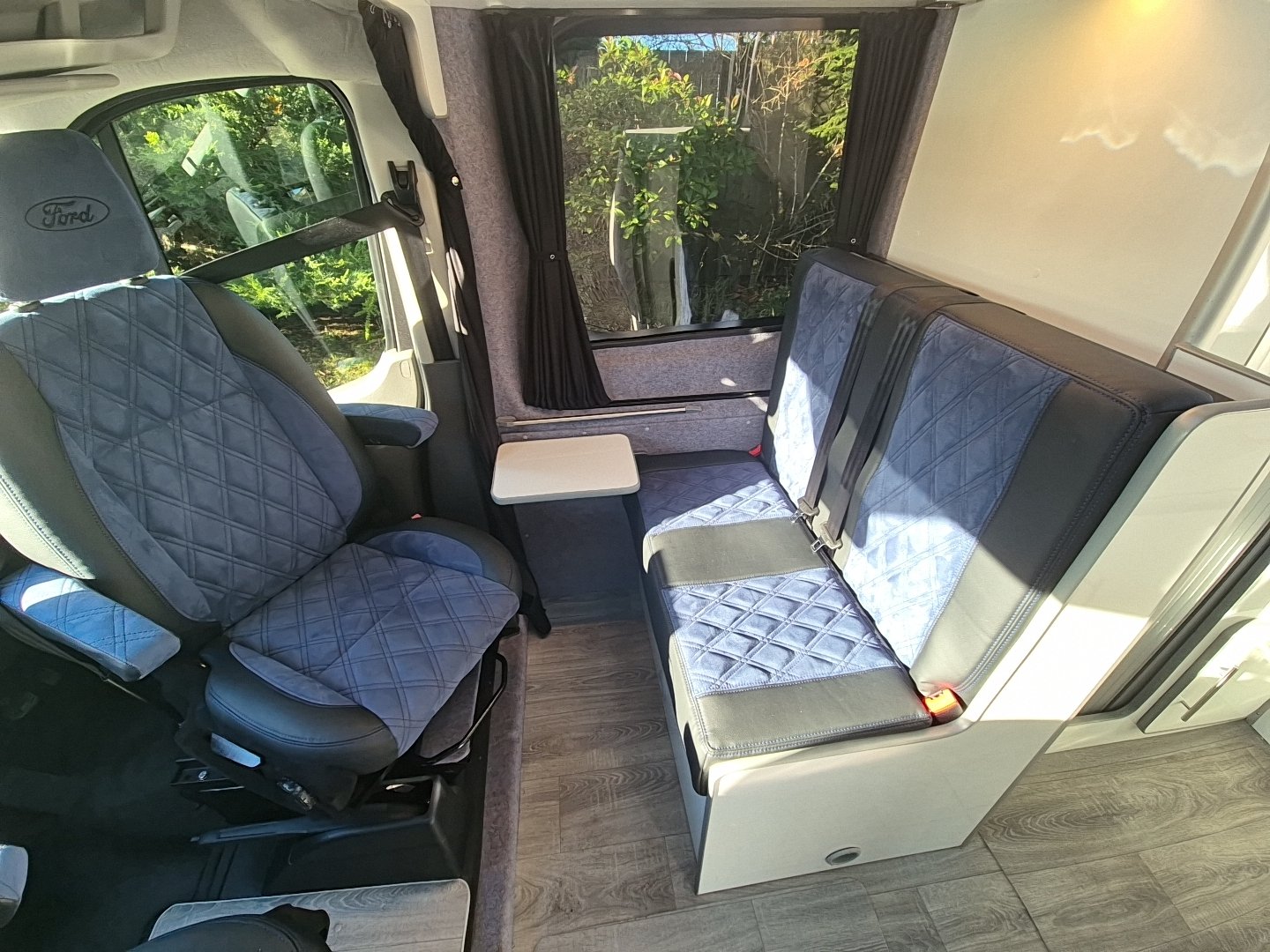

3rd MOT compliant traveling seat which creates a double lounge seat giving comfortable seating and dining area

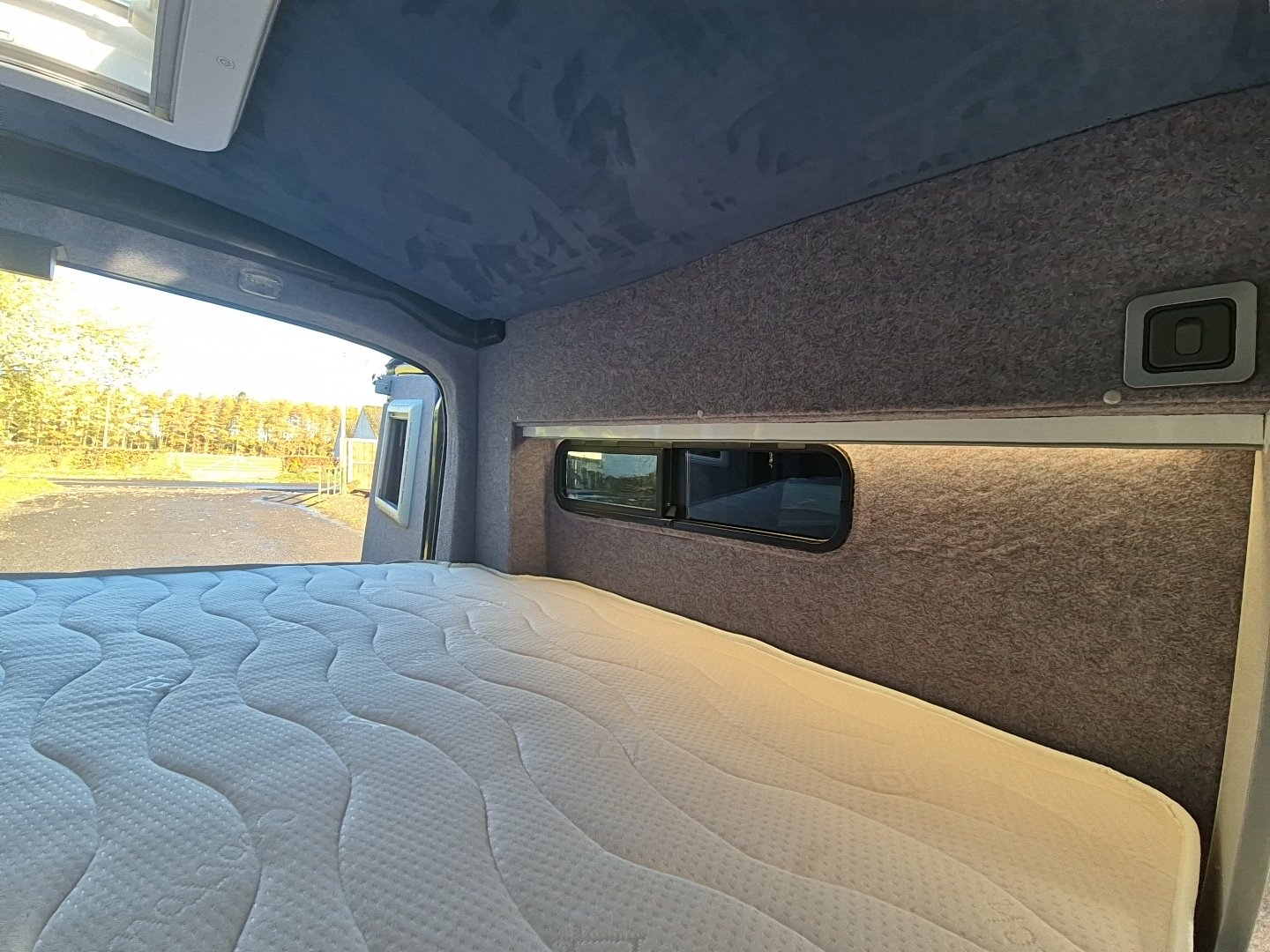

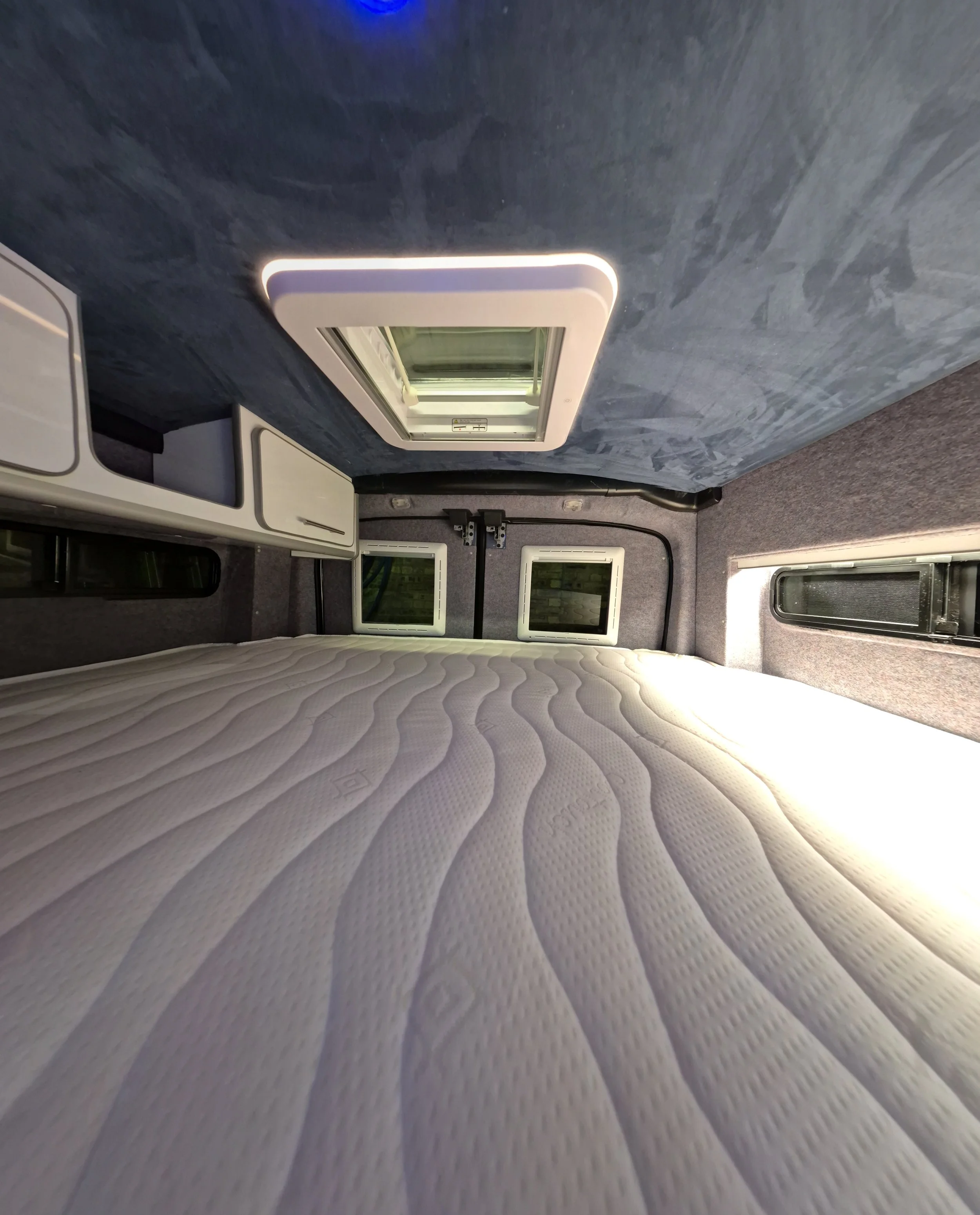

Full sized fixed double bed

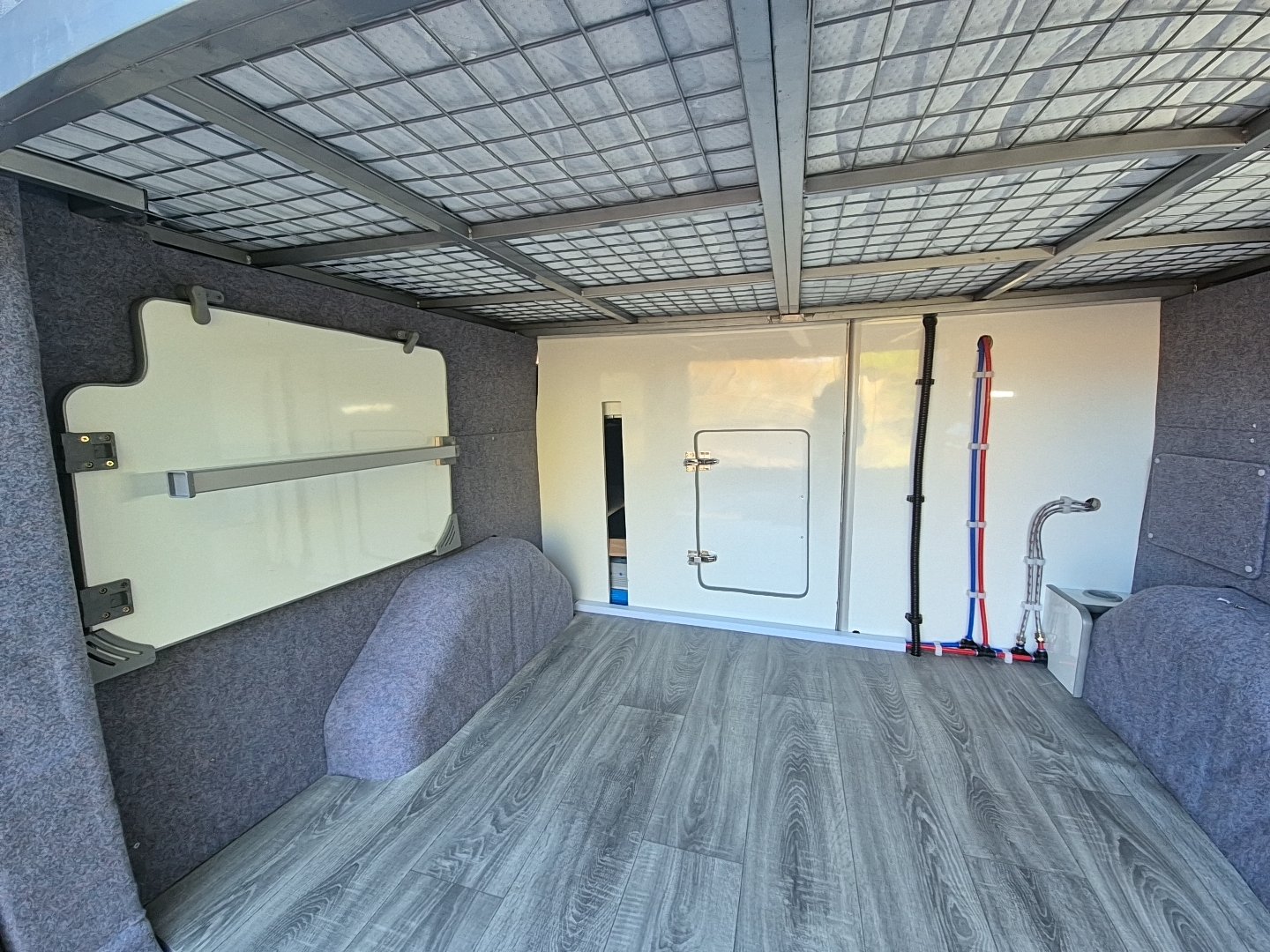

Storage space throughout with a massive garage under the bed to provide storage space for bikes etc
BUILD DETAILS

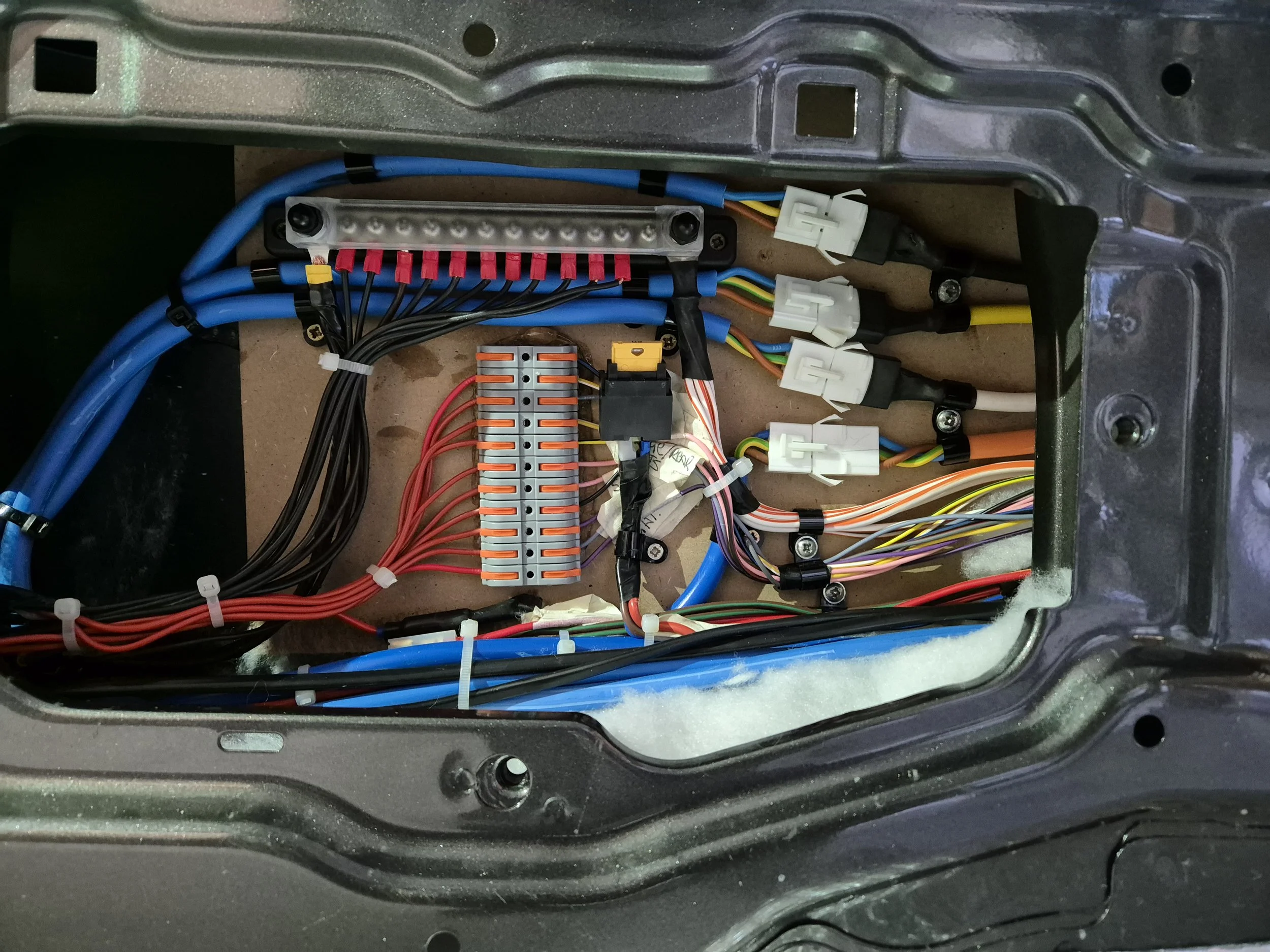

12v electrical system, charging via 3 sources
Via vehicle alternator whils driving
Via solar (total of 350w)
Via hook up when on site
200ah batteries

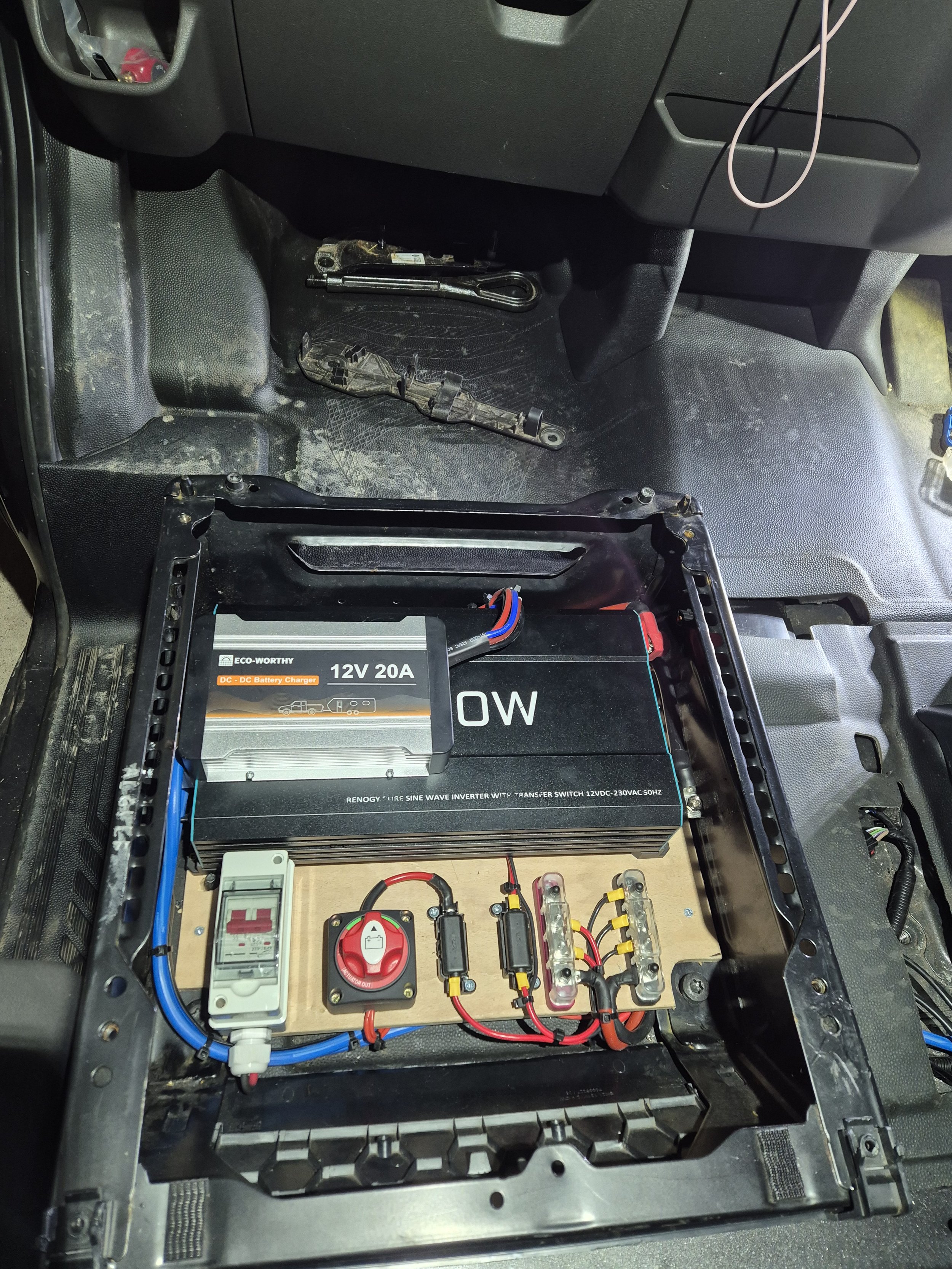

2000w Inverter system with UPS allowing use of 240v equipment whilst off grid, also connected to 240v ring main
240v Hook up point
12v mood lighting throughout
Usb and 12v chagrin points throughout
All electrics managed by Sargent motorhome electrical management system
6kw diesel combi heater,digitally controlled hot air heating and 20l hot water boiler system, BT enabled
