PREVIOUS CONVERSION
HIGH TOP CITROEN RELAY

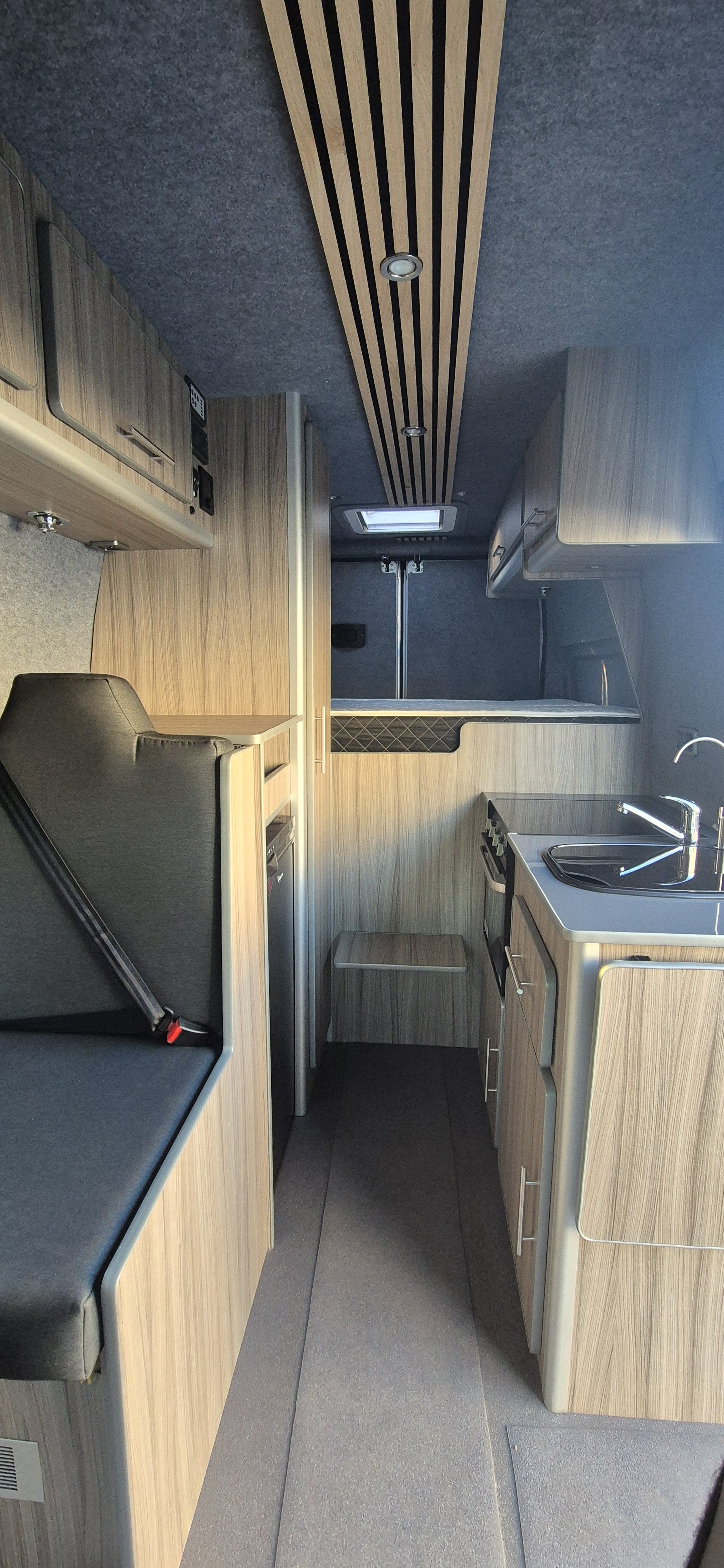

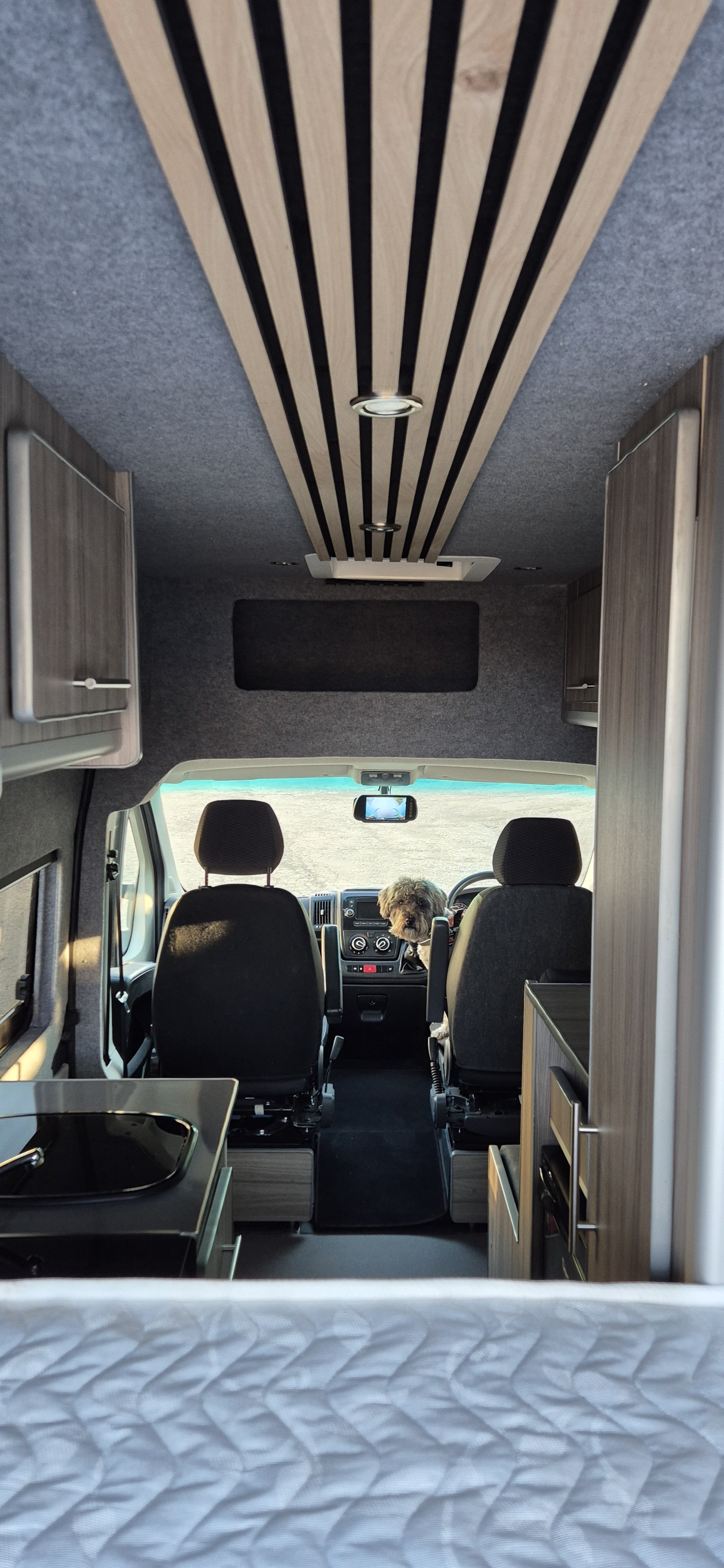

The brief was to build a three berth campervan with full off grid capability in a LWB chassis. The owner wanted a camper that they could comfortably travel in across Europe and eventually for it to become their full time home on wheels. It had to have a fixed bed with storage underneath for two mountain bikes. Another priority in the build was an MOT approved third travelling seat which converted into a single bed.
Type: Full build
Converted: 2024
Sleeps: 2-3
Full off grid capability

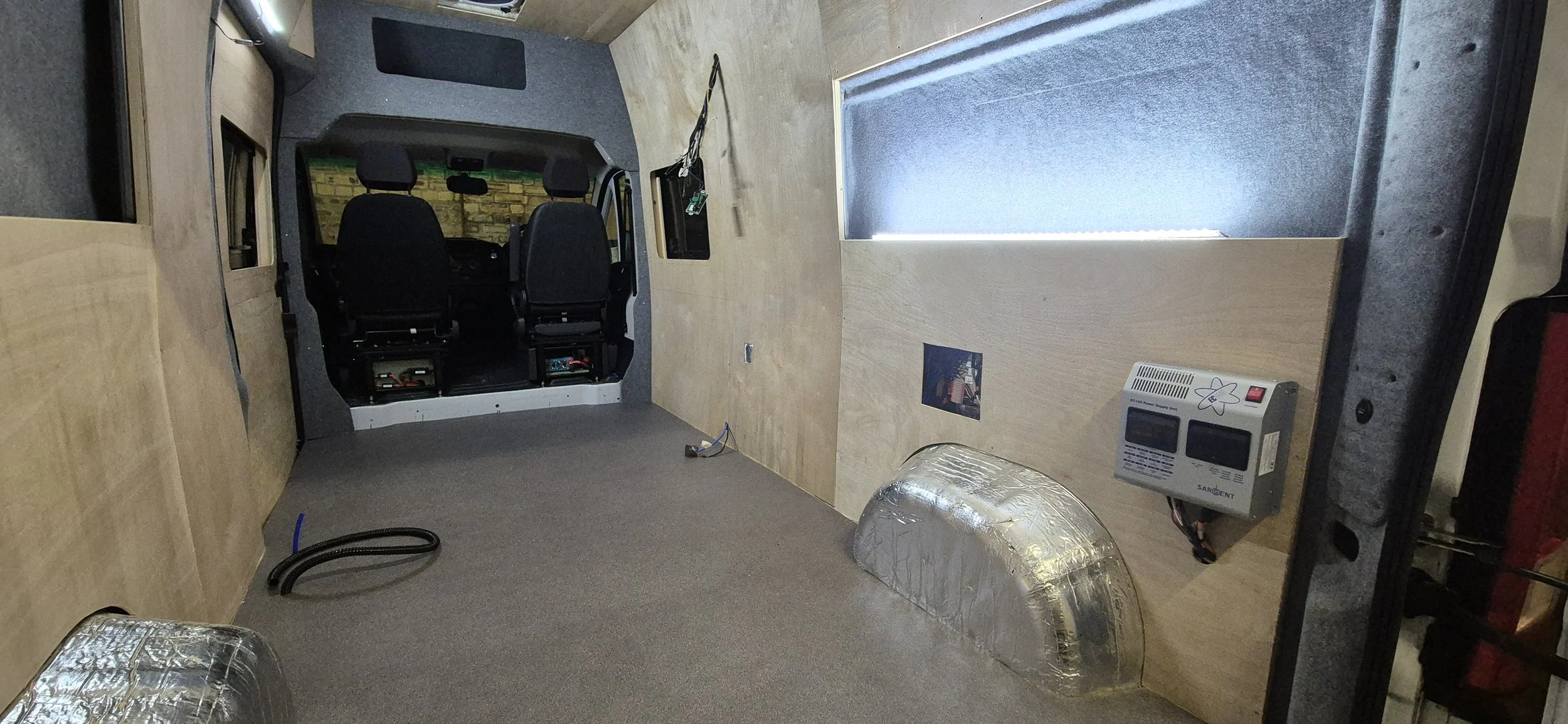

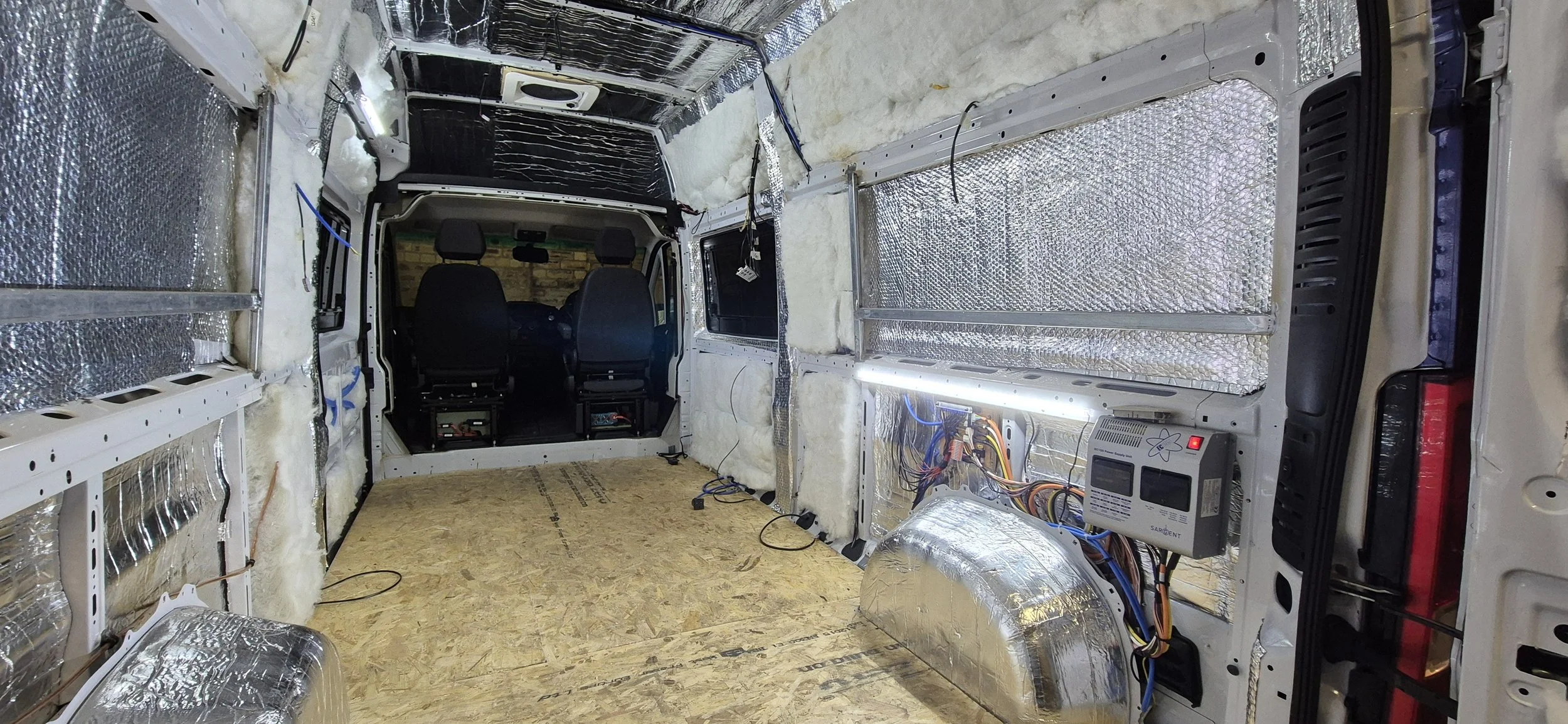

Fully insulated
Full hot and cold water system with underslung fresh and waste water tanks, insulated with heater pads to ensure use all year round

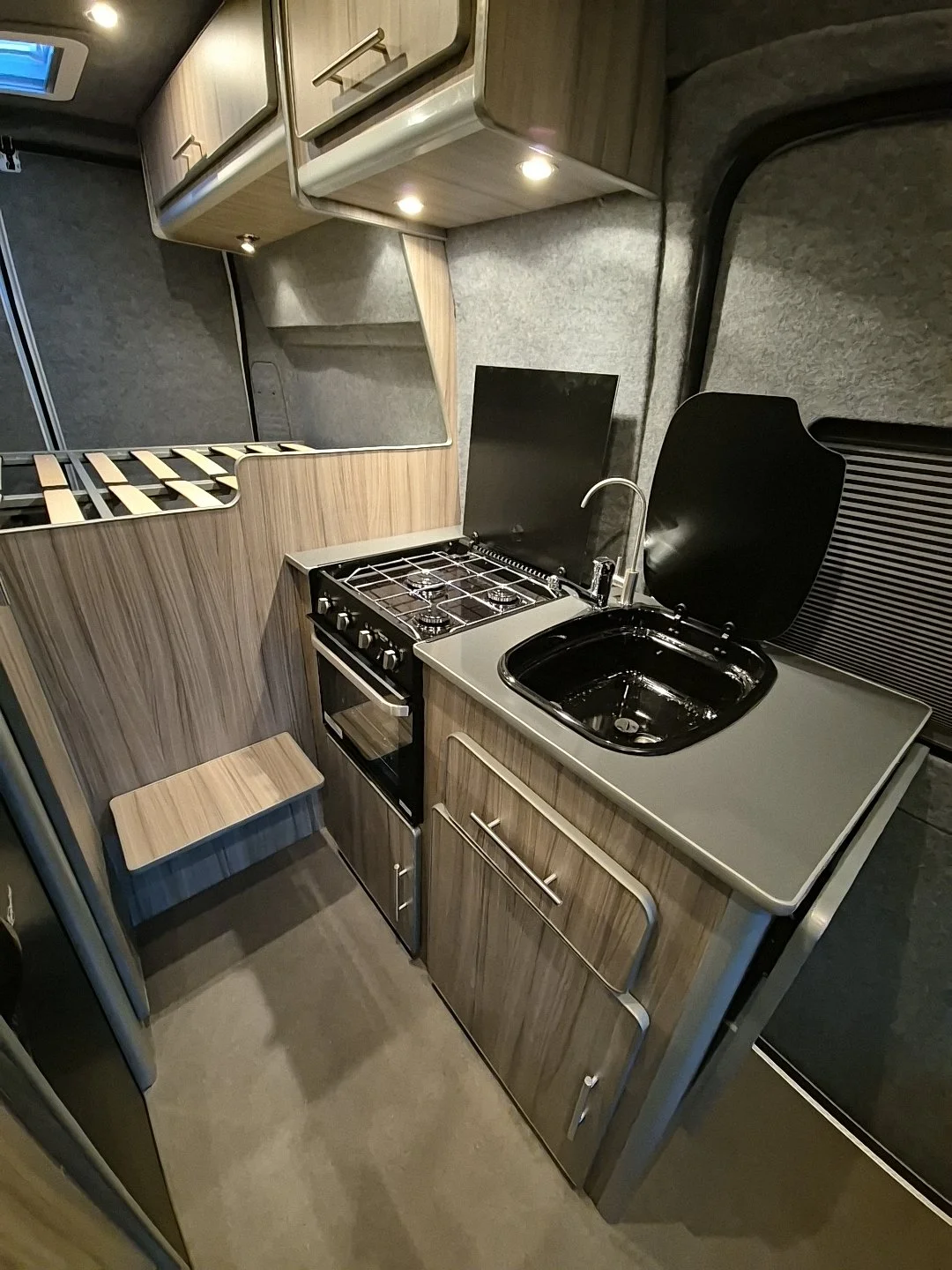

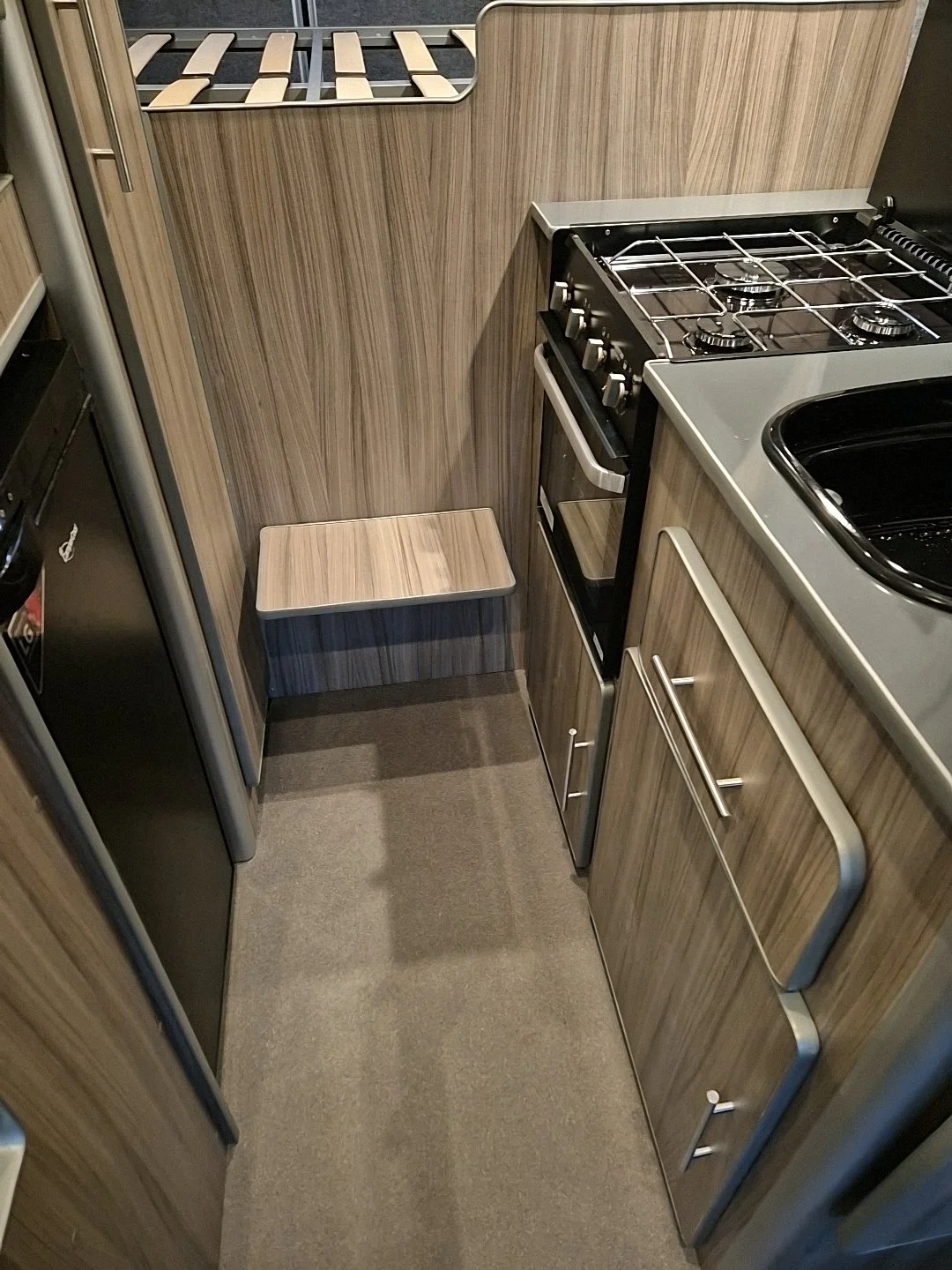

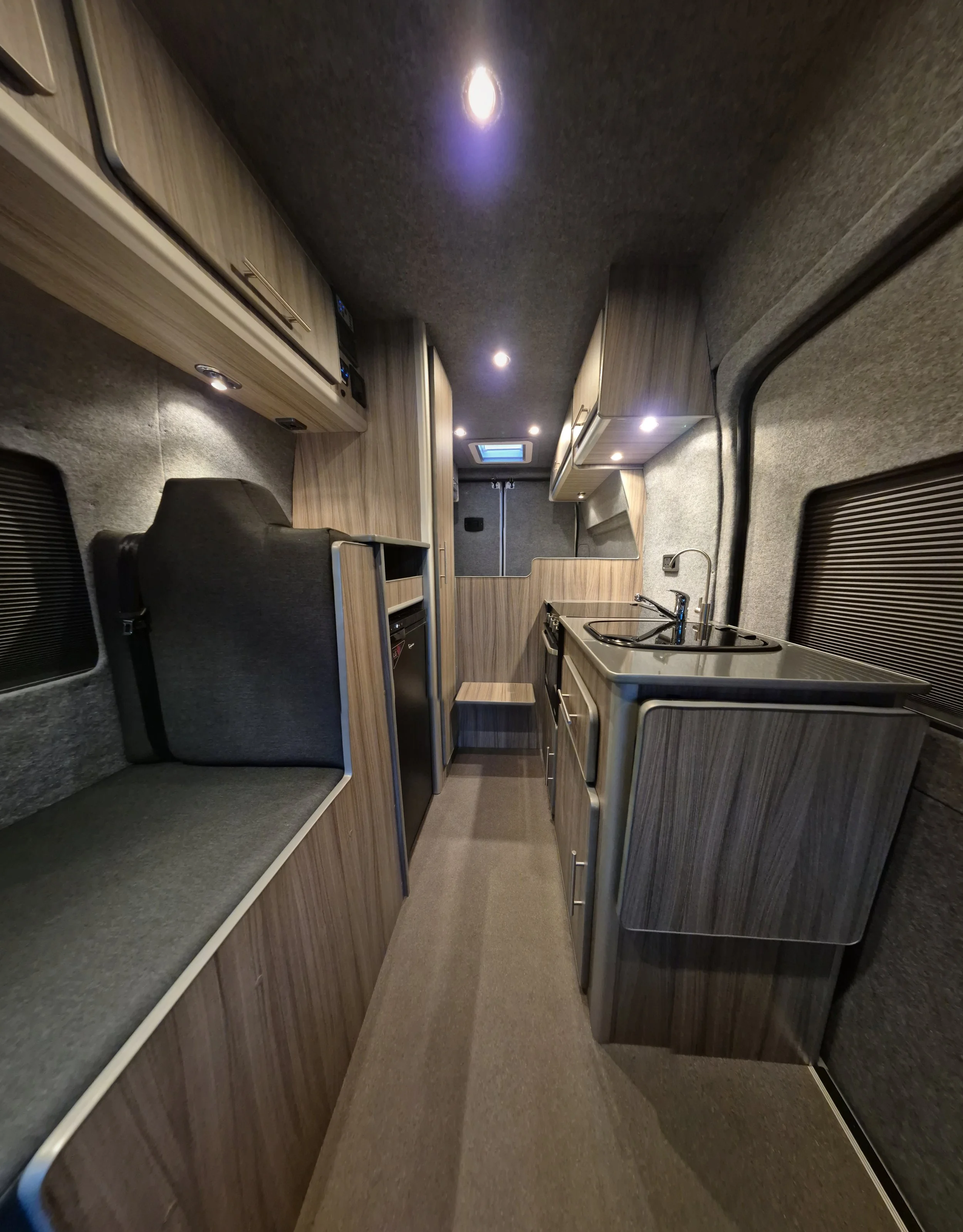

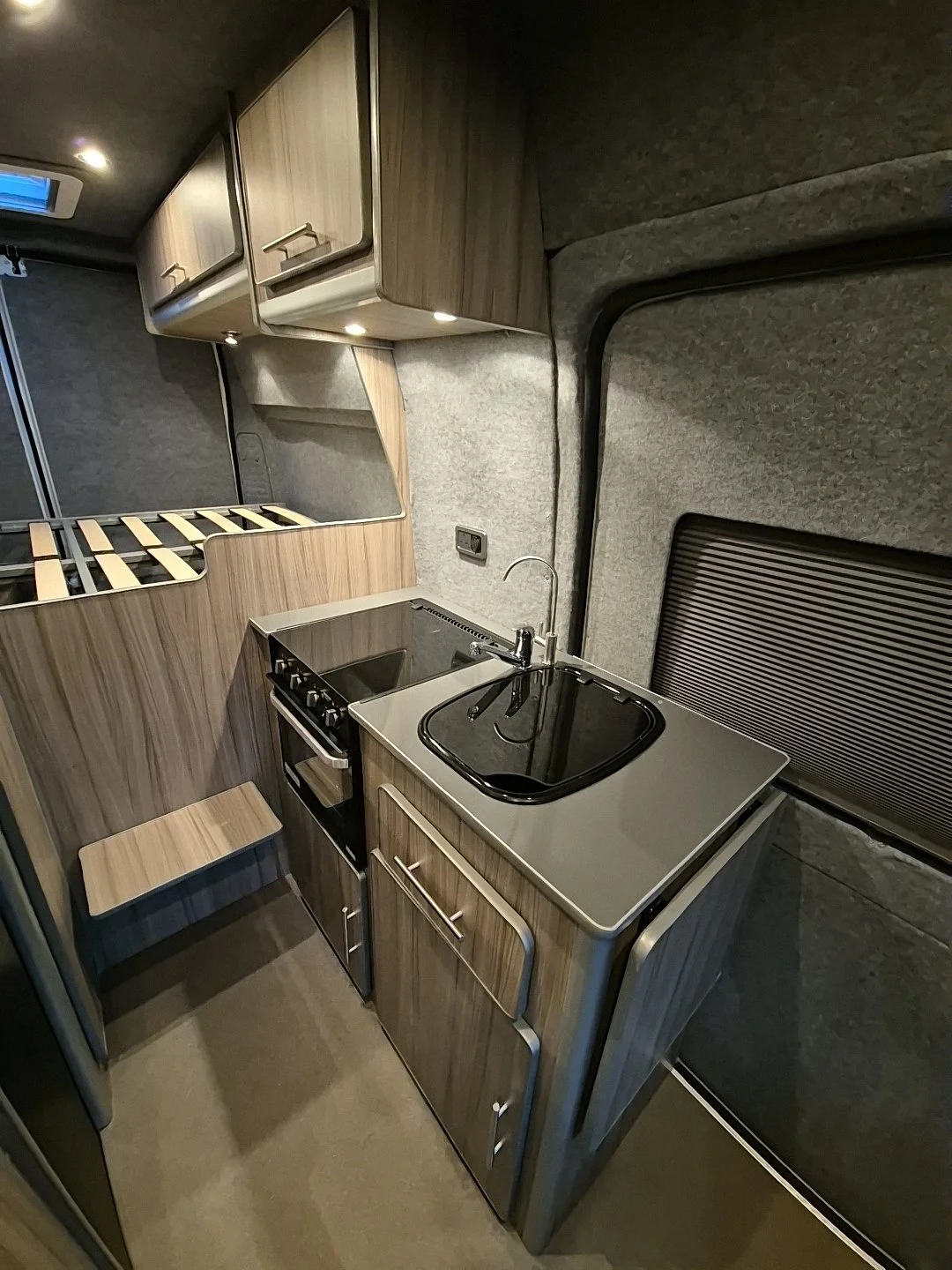

Full Kitchen with treble gas hob, full sized gas oven and grill,Full sized sink with hot and cold water and 85l compressor fridge, fresh filtered water tap

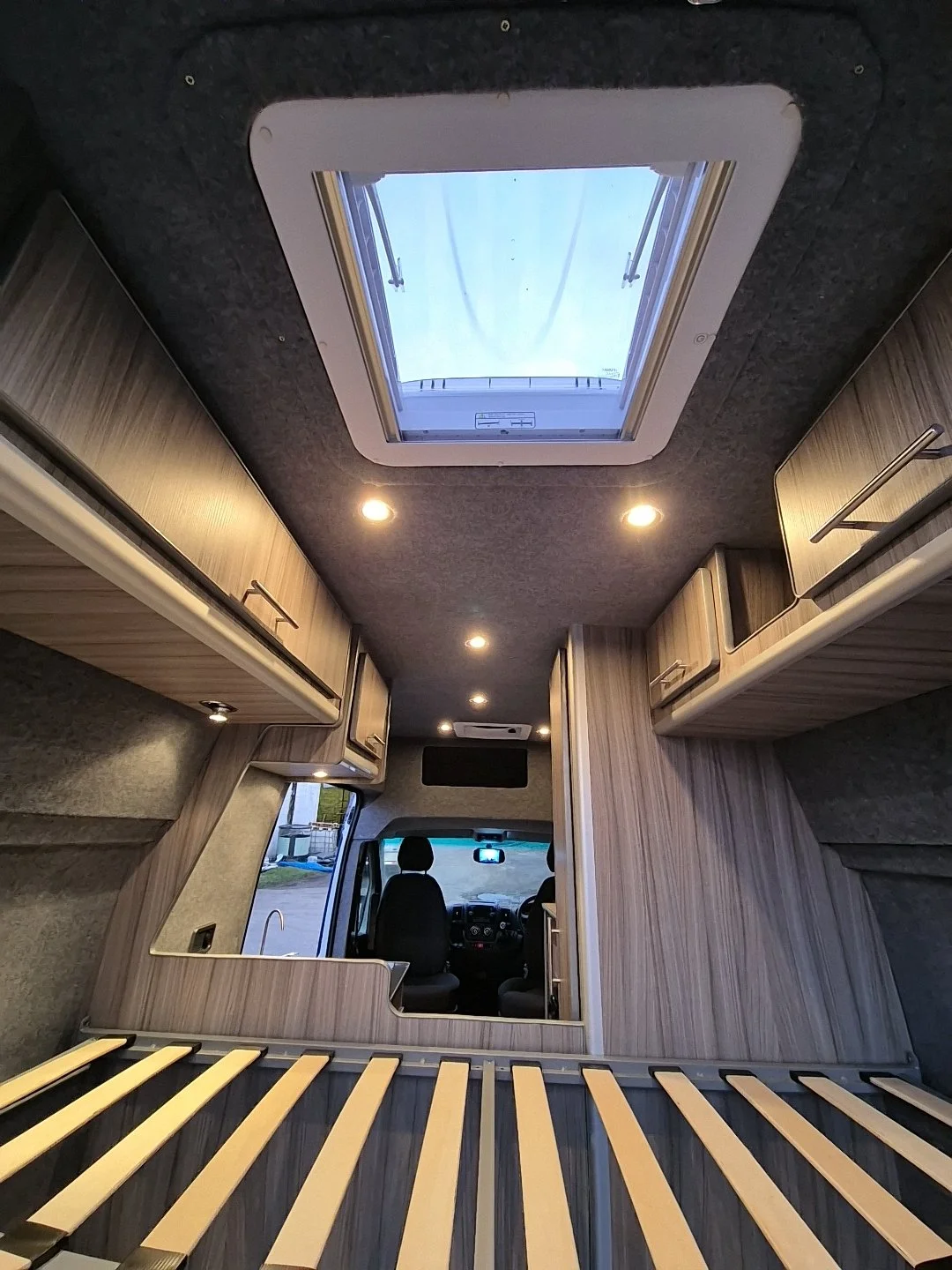

2 x skylight and 1 x Maxxairfan fitted to roof to help control temperature in warm climates

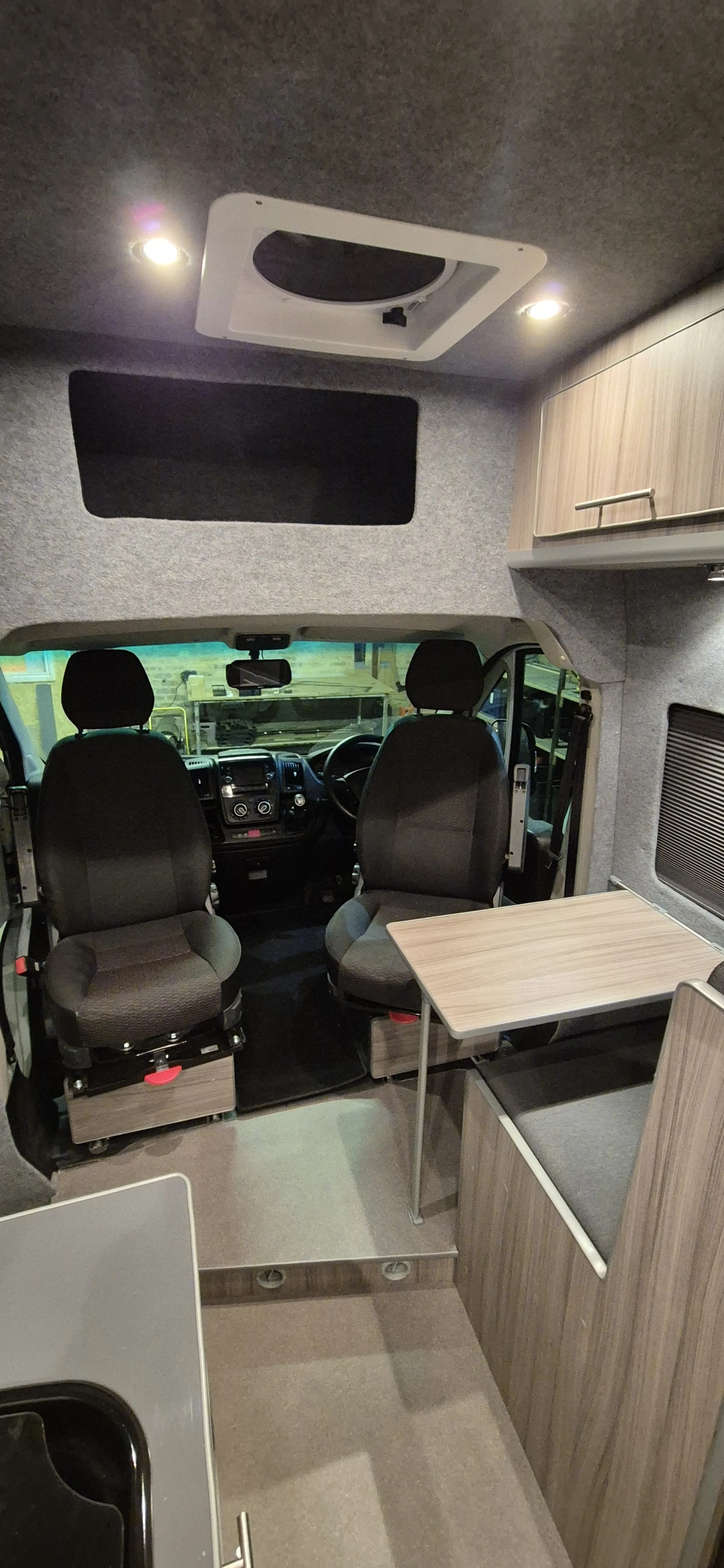

Twin swivel captain seats

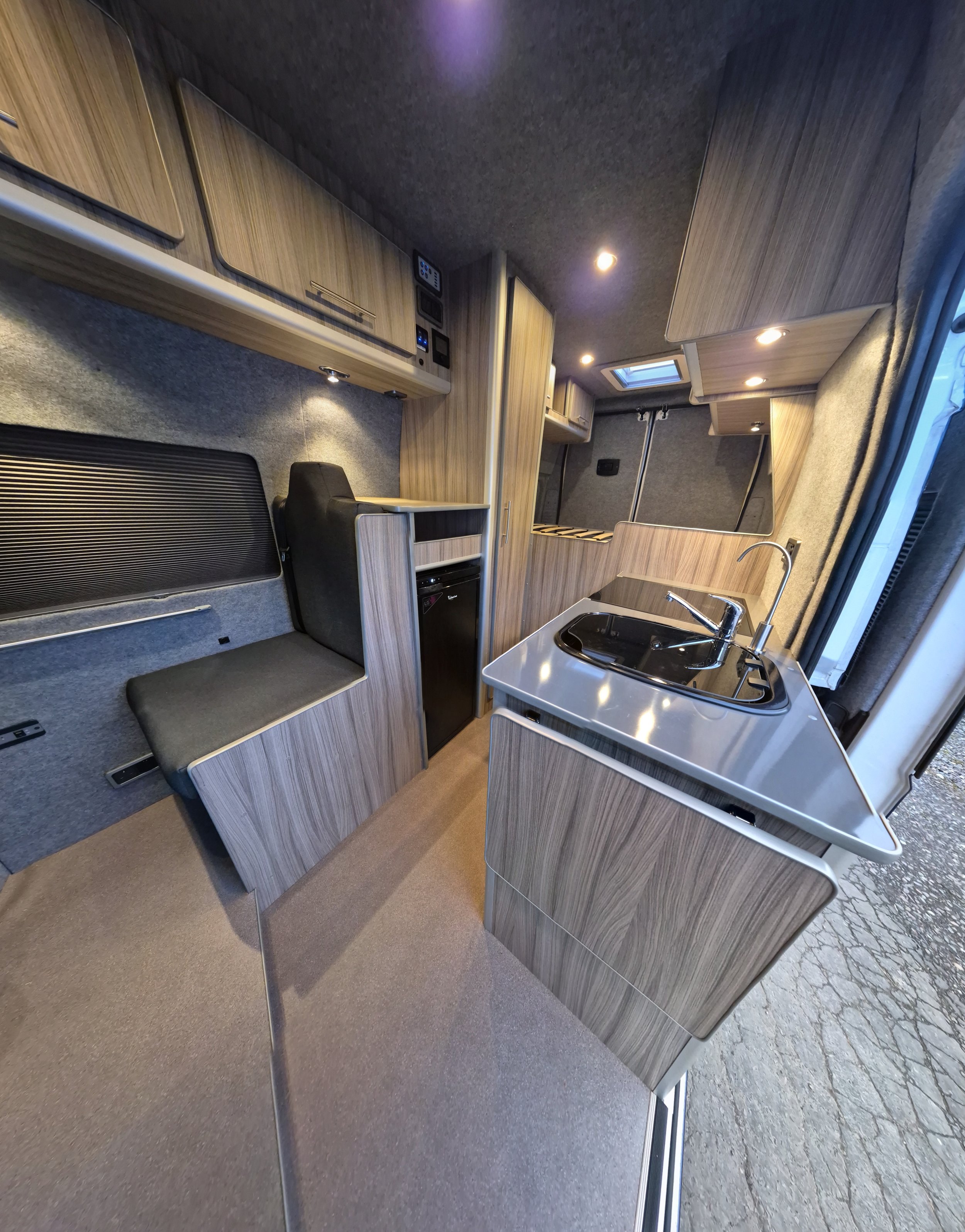

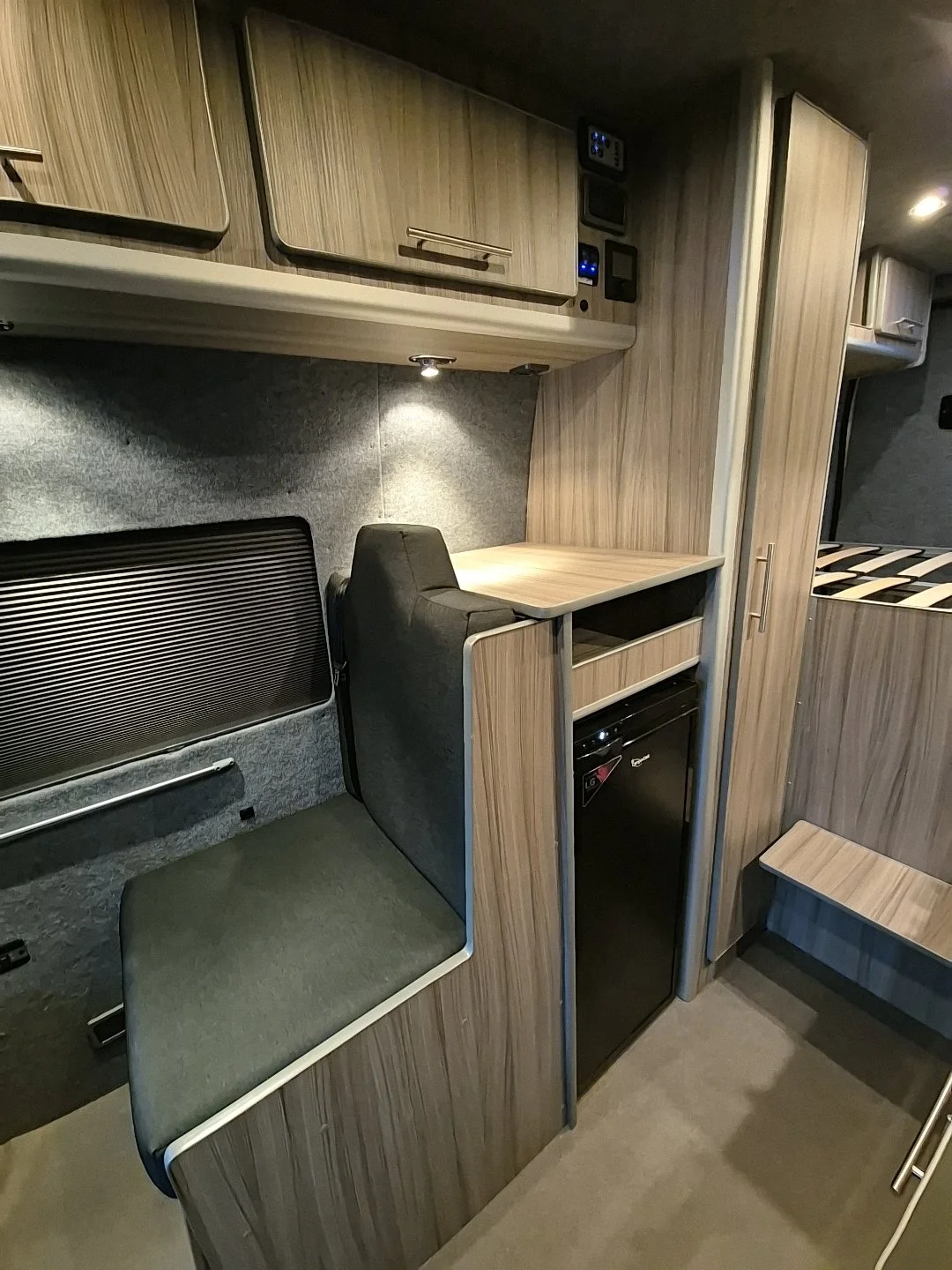

3rd lounge seat to create comfortable seating and dining area which has capability of providing a single bed

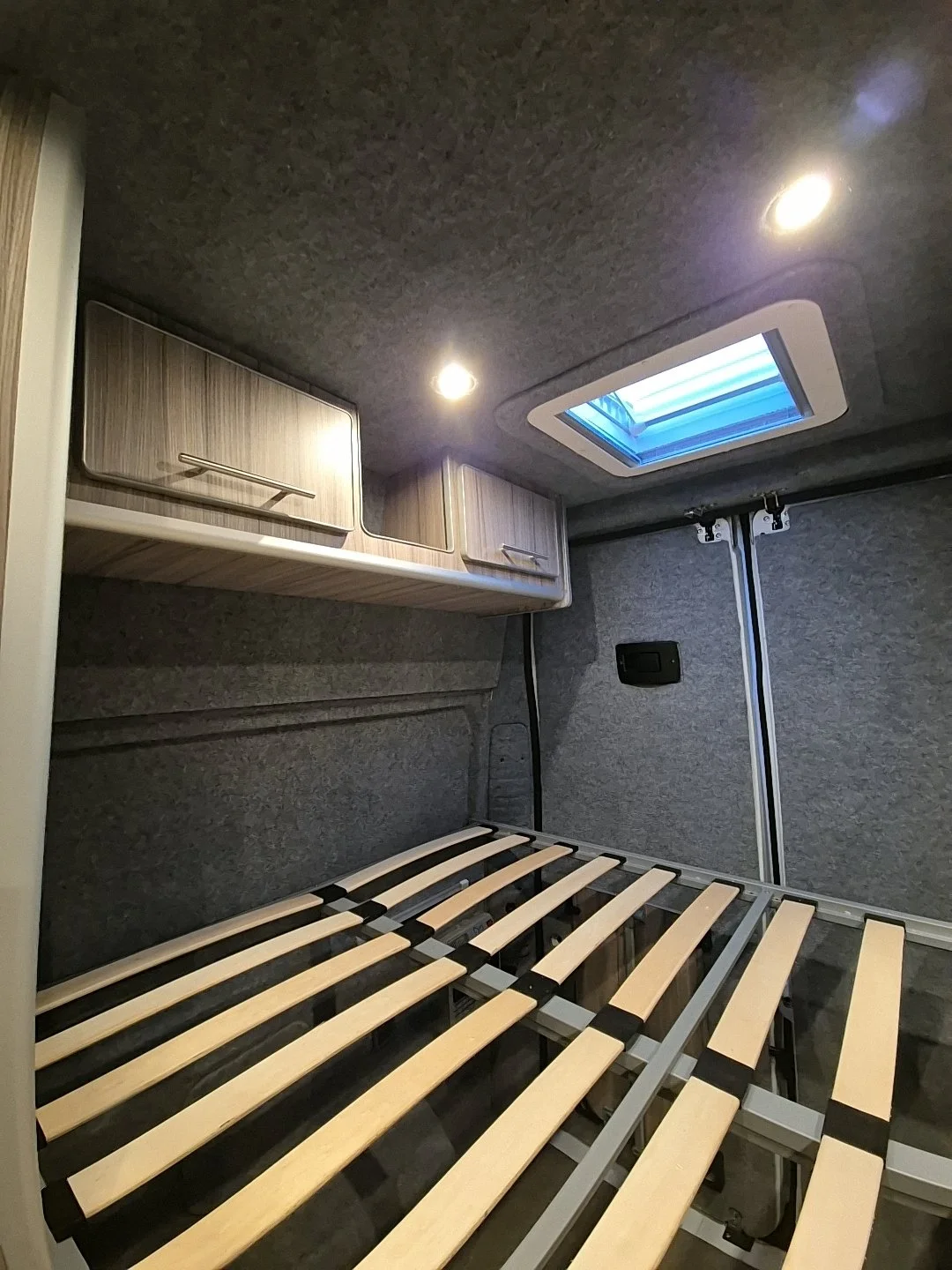

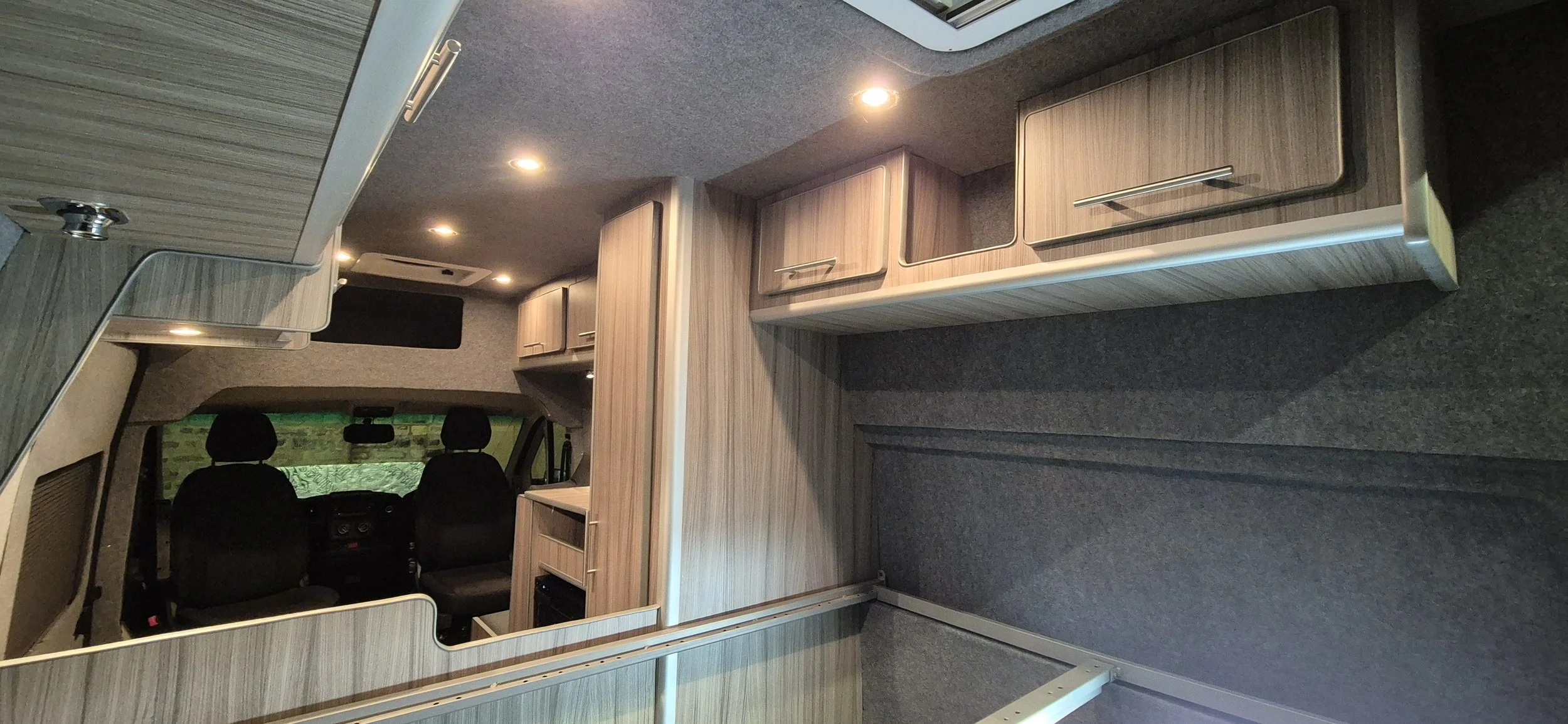

Full sized fixed double bed

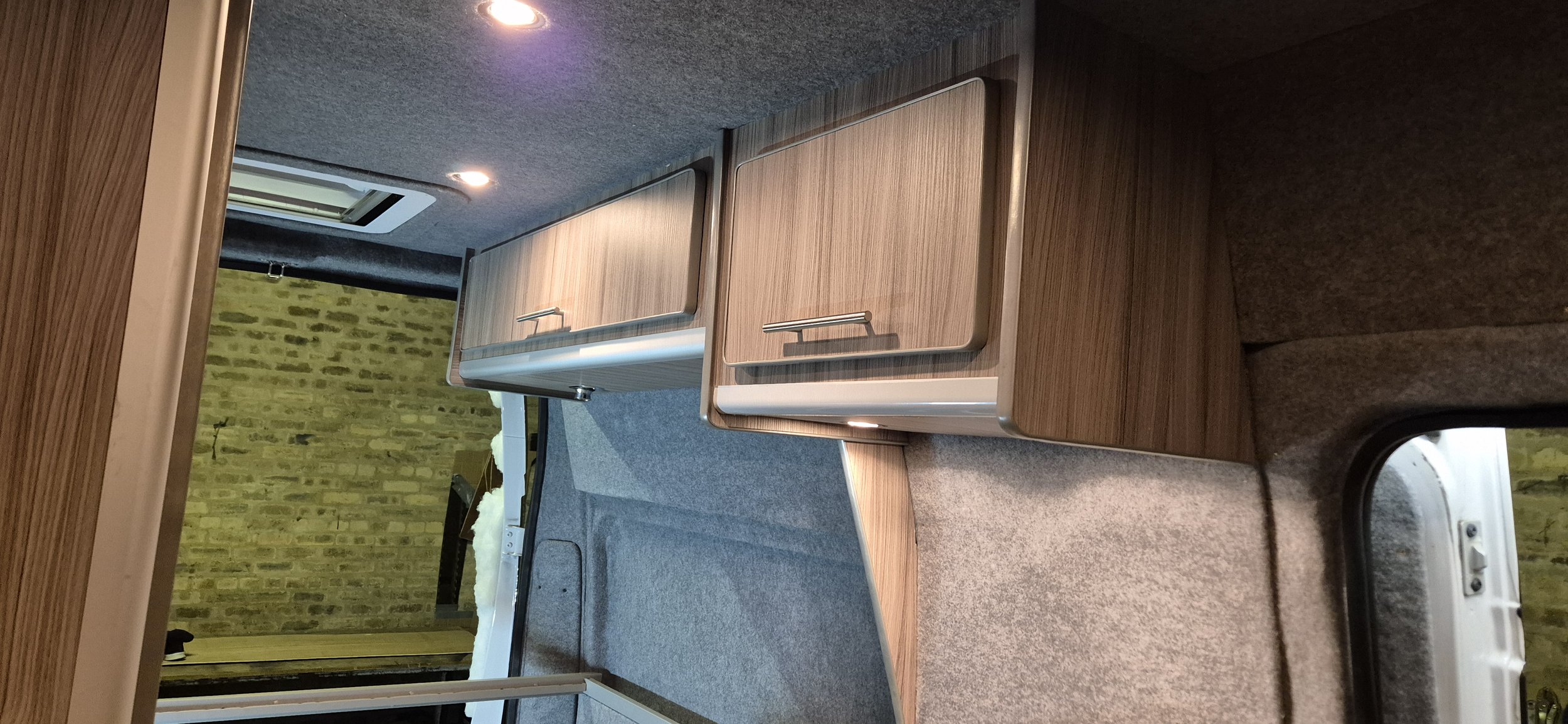

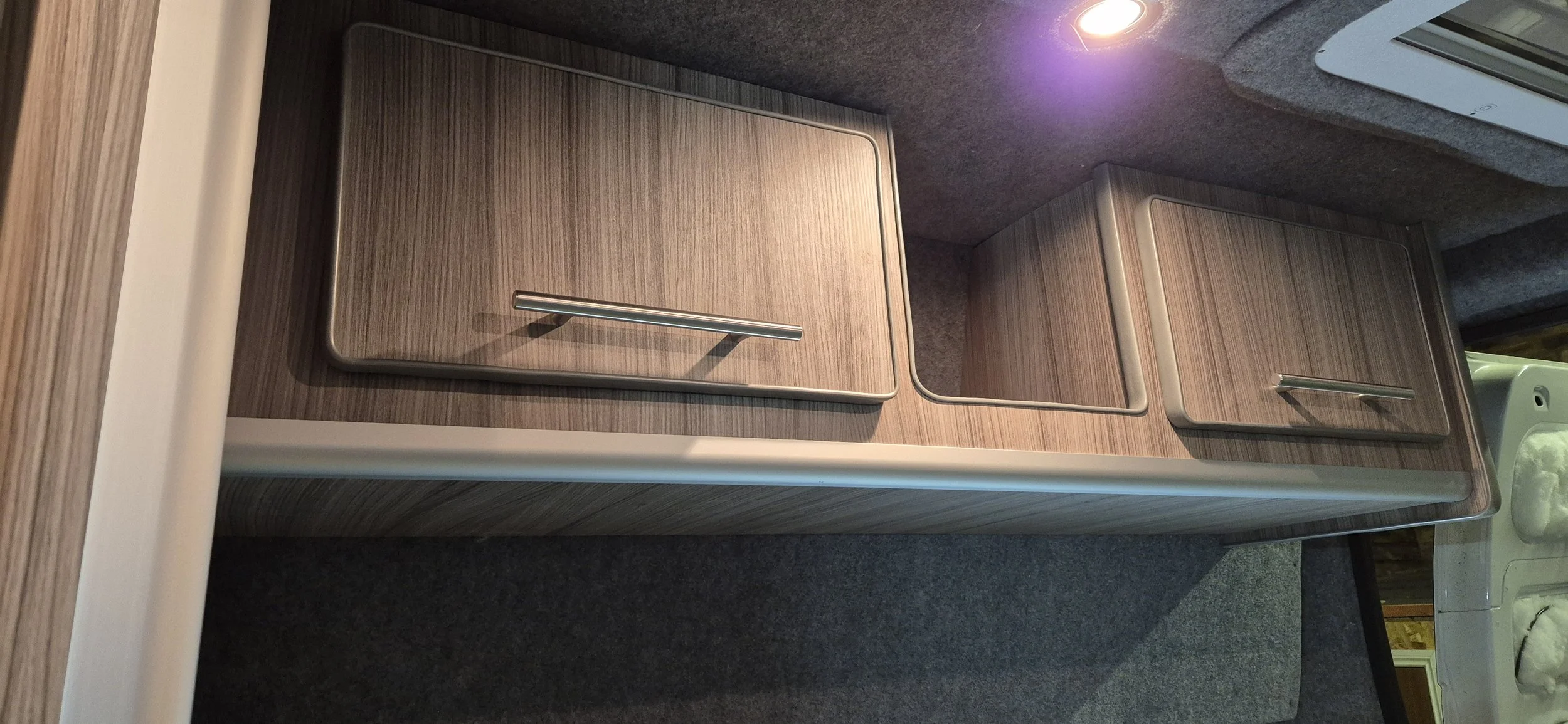

Storage space throughout with a massive garage under the bed to provide storage space for bikes etc
BUILD DETAILS

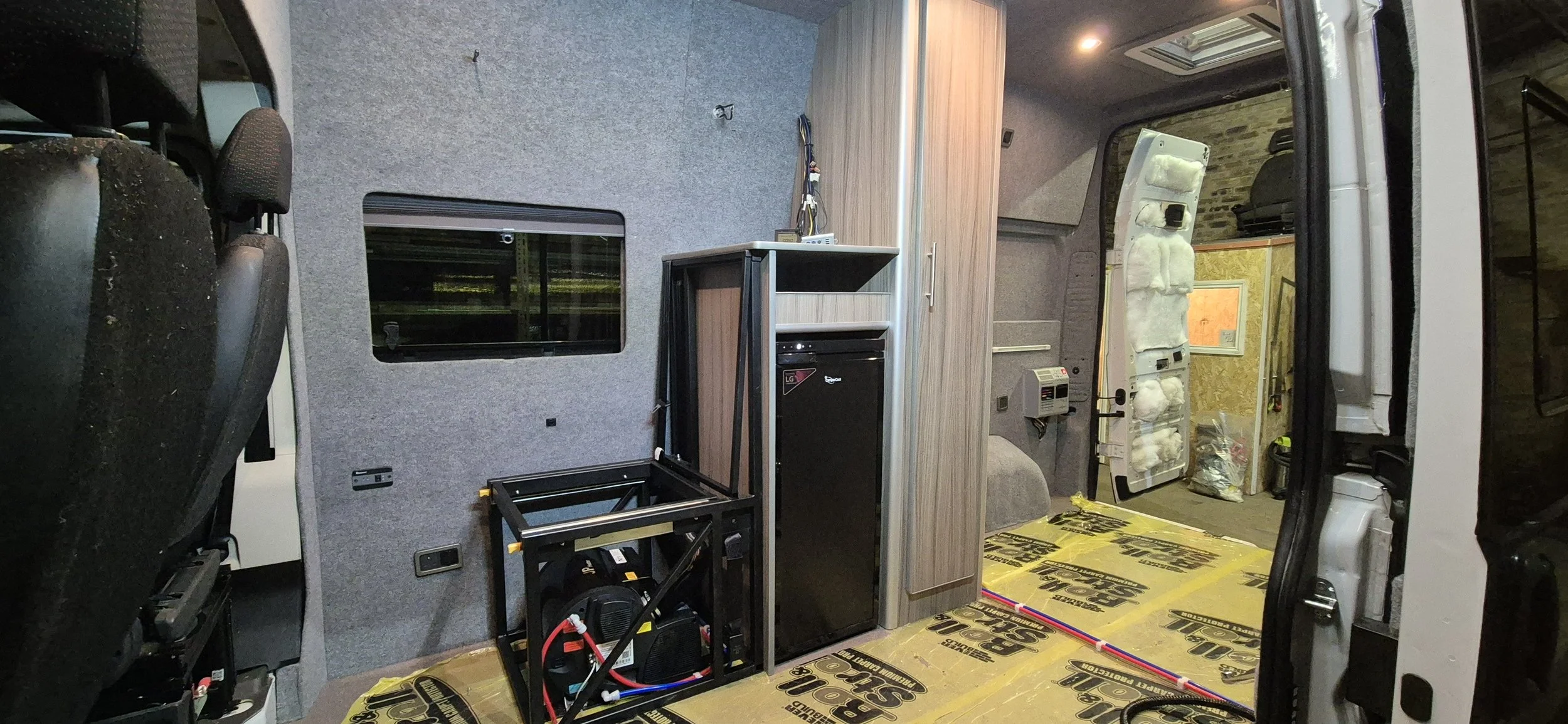

12v electrical system, charging via 3 sources
Via vehicle alternator whils driving
Via solar (total of 350w)
Via hook up when on site
2 x 120ah batteries

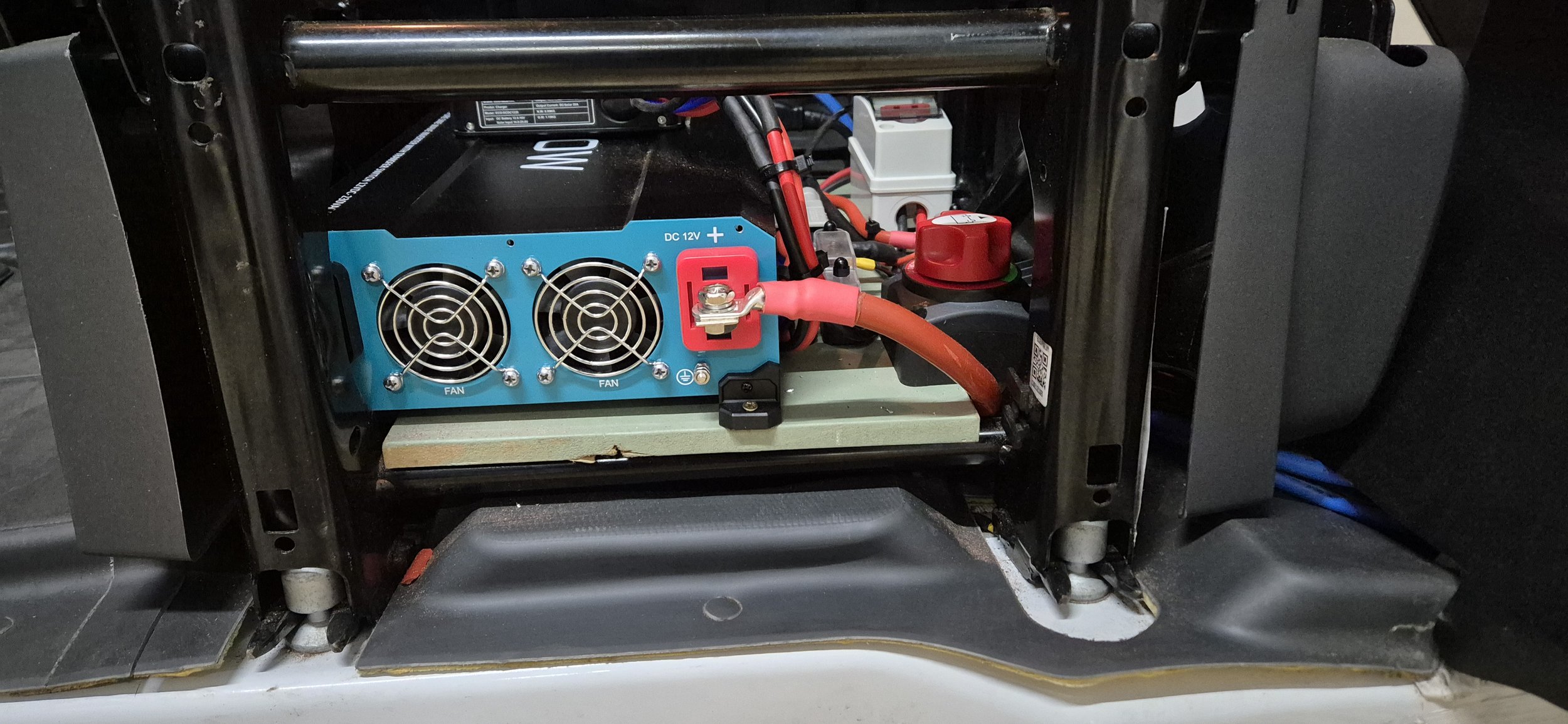

2000w Inverter system with UPS allowing use of 240v equipment whilst off grid, also connected to 240v ring main
240v Hook up point

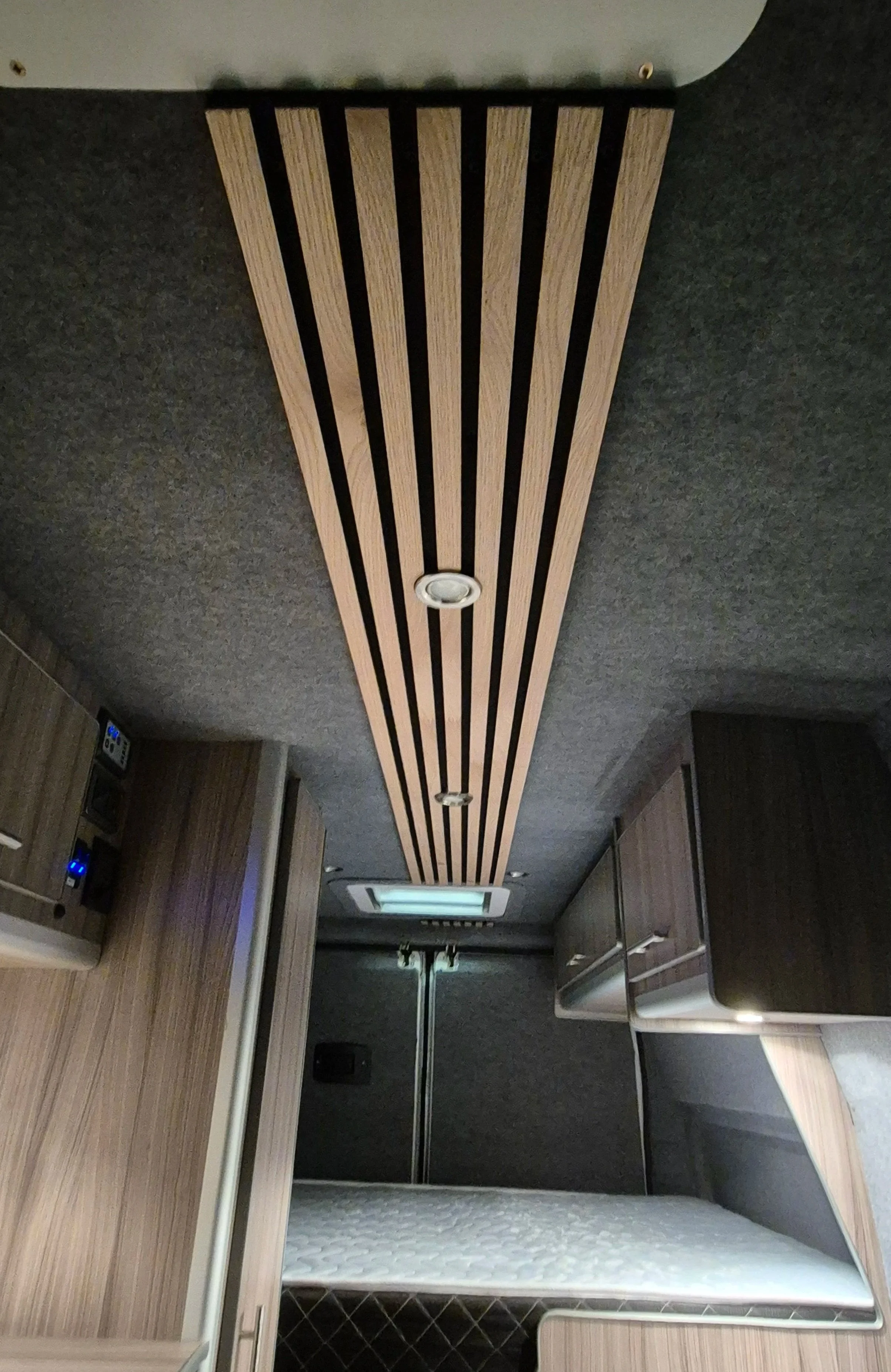

12v mood lighting throughout
Usb and 12v chagrin points throughout
All electrics managed by Sargent motorhome electrical management system
6kw diesel combi heater,digitally controlled hot air heating and 20l hot water boiler system, BT enabled
ELECTRICAL SETUP
